Remove/install valves - AR05.30-P-3511CD

ENGINES 651 in MODELS 166, 172, 204, 207, 212, 218, 221

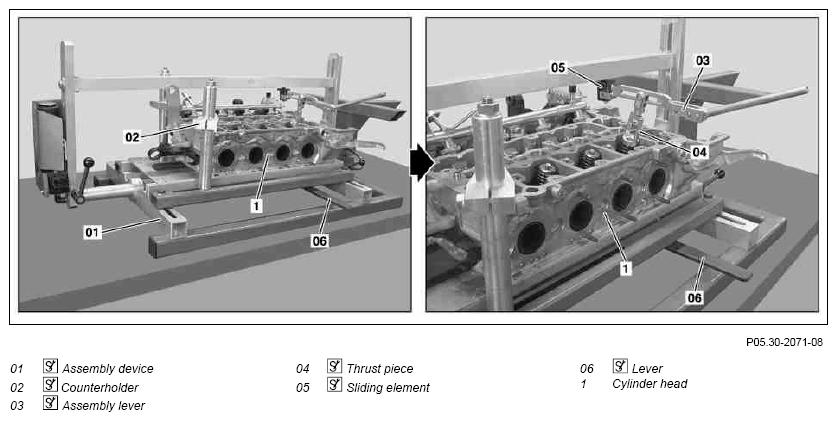

Fig 1: Identifying Valves Remove/Install Components (1 Of 2)
G09974448Courtesy of MERCEDES-BENZ USA

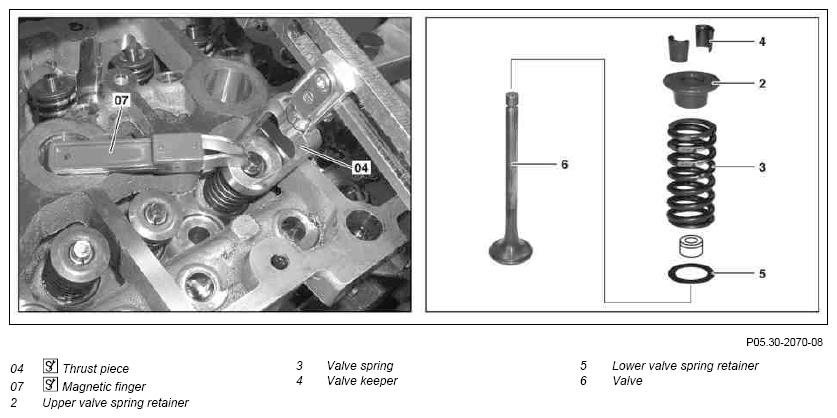

Fig 2: Identifying Valves Remove/Install Components (2 Of 2)
G09974449Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove glow plugs   AR15.20-P-4111CD
2 Remove cylinder head (1)   AR01.30-P-5800CD
3 Mount cylinder head (1) on the assembly device (01) IMPORTANT Observe owner's manual from the assembly device manufacturer SPECIAL TOOL (01).
    SPECIAL TOOL Assembly device Figure
4 Put together valve assembly tool and mount on the assembly device (01) IMPORTANTSPECIAL TOOLSPECIAL TOOL Mount retaining fork on sliding piece (05) and place SPECIAL TOOL thrust piece (04) vertically on upper valve spring retainer (2).
    SPECIAL TOOL Valve assembly tool case Figure
5 Press valve springs (3) together with valve assembly tool and remove valve keepers (4) IMPORTANT Use tweezers or SPECIAL TOOL magnetic finger (07).
INSTALLATION NOTES Ensure valve keepers (4) are properly fitted. This avoids loosening of the valve (6).

    SPECIAL TOOL Magnetic finger Figure
6 Remove upper valve spring retainer (2) and valve spring (3) IMPORTANT Check upper valve spring retainer (2) for scouring and replace if required.
7 Remove valve stem seals with pliers INSTALLATION IMPORTANT Use new valve stem seals. Fit protective sleeve onto the valve stem. Oil valve stem seals and press on with a drift.
    SPECIAL TOOL Pliers Figure
    SPECIAL TOOL Drift Figure
8 Take off lower valve spring retainer (5) IMPORTANT Check lower valve spring retainer (5) for score marks, cracks and pitting; replace if necessary.
9 Remove cylinder head (1) from assembly device (01) and take out valves (6) INSTALLATION IMPORTANT Check shaft surface of valve for roughness and ridging and valve seat rings for roughness of the user interface (visual inspection or a with nail probe). Replace valves that have rough stem surfaces or burrs.
10 Install in the reverse order
