Remove/Install Radar Sensor - AR30.30-P-1210GQA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 (except 166.874) as of model year 2016 with CODE 233 (DISTRONIC PLUS)
MODEL 292 with CODE 233 (DISTRONIC PLUS)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Connect diagnostic system and save basic data from front left bumper radar sensors control unit (1) or front right bumper (2) | Only when replacing the front left bumper radar sensors control unit (1) or front right bumper radar sensor (2). | |
| AD00.00-P-2000-04A | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (at least 2 m) | ||
| 3 | Remove front bumper | Model 292 with code 233 (DISTRONIC PLUS) | AR88.20-P-2000GQC |
| Model 166 (except 166.874) as of model year 2016 with code 233 (DISTRONIC PLUS) | AR88.20-P-2000GQ | ||
| 4 | Release and disconnect electrical connection (5) | ||

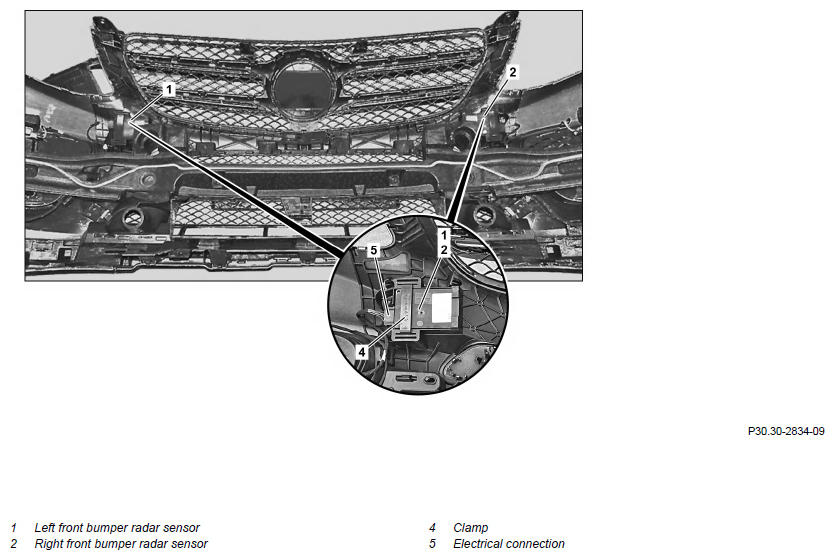

| 5 | Remove clamp (4) on front left bumper radar sensor (1) or front right bumper radar sensor (2) or controller unit | Figure | |
| 6 | Remove front left bumper radar sensor (1) or front right bumper radar sensor (2) | ||
| 7 | Install in the reverse order | ||
| Initial startup | |||
| 8 | Perform SCN coding of front left bumper radar sensors control unit (1) or front right bumper radar sensors (2) | Only when replacing the front left bumper radar sensors control unit (1) or front right bumper radar sensor (2). | AR54.21-P-0015X |
| 9 | Transfer over stored basic data to the front left bumper radar sensors control unit (1) or front right bumper radar sensor (2) | Only when replacing the front left bumper radar sensors control unit (1) or front right bumper radar sensor (2). | |
| AD00.00-P-2000-04A | |||
| 10 | Perform commissioning of the front left bumper radar sensors control unit (1) or front right bumper radar sensor (2) | Only when replacing the front left bumper radar sensors control unit (1) or front right bumper radar sensor (2). |
