Service Campaign 2023060006 - Perform Injector Coding (P-SC-2023060006)

Publication date: 2023-12-12
Reference number: P-SC-2023060006

SERVICE CAMPAIGN 2023060006 - PERFORM INJECTOR CODING

SERVICE CAMPAIGN BULLETIN

Reference Number(s): 2023060006, Date of Issue: December 12, 2023

MERCEDES-BENZ:

Model S-Class (221 platforms) Model Year 2012

SERVICE INFORMATION

IMPORTANT NEW EMISSION SERVICE CAMPAIGN INFORMATION

Please note that all customer inquiries should be directed to the Customer Assistance Center at 1-800-FOR-MERCEDES.

Sincerely,

Gregory Gunther

Department Manager, Vehicle Compliance & Analysis

TO: ALL MERCEDES-BENZ CENTERS

SUBJECT

Model S-Class (221 platforms)

Model Year 2012

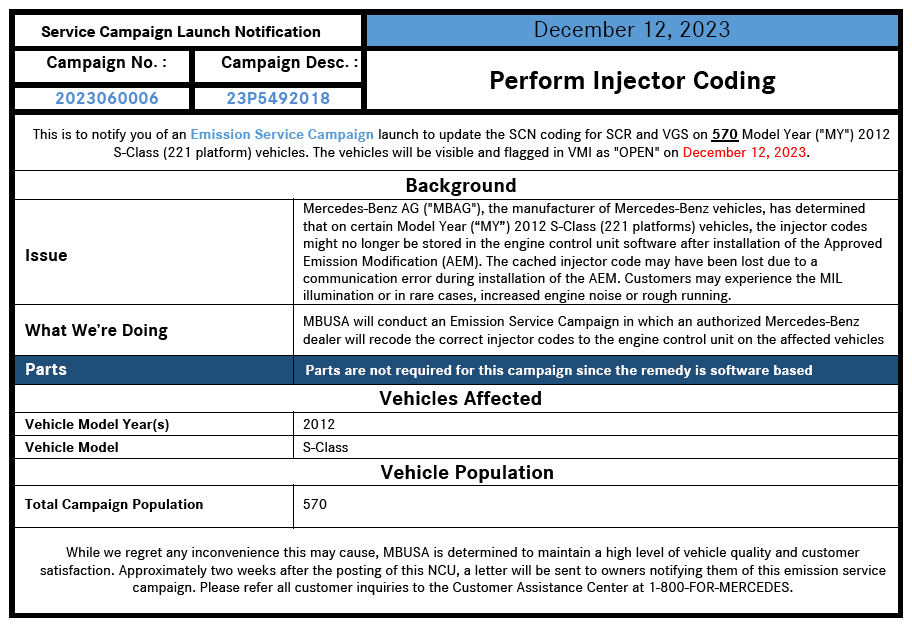

Mercedes-Benz AG ("MBAG"), the manufacturer of Mercedes-Benz vehicles, has determined that on certain Model Year ("MY") 2012 S-Class (221 platforms) vehicles, the injector codes might no longer be stored in the engine control unit software after installation of the Approved Emission Modification (AEM). The cached injector code may have been lost due to a communication error during installation of the AEM. Subsequently, during the renewed run of the AEM, no injector code could be read and therefore no code was stored in the engine control unit.

Prior to performing this Campaign:

VMI must be checked before performing campaigns to verify that the campaign is required on a specific vehicle. Always check for any other open campaigns, and perform accordingly.
Please review the entire Campaign bulletin and follow the repair procedure exactly as described.

Approximately 570 vehicles are affected.

Order No. P-SC-2023060006

Always use the latest XENTRY Diagnosis software release with all available add-ons.
Follow the operation steps exactly as described in XENTRY Diagnosis.
Use a charger to ensure sufficient power supply to the vehicle's on-board electrical battery system (greater than 12.5 V).
If XENTRY Diagnosis is already connected to the vehicle, start with Work Procedure step 2 .

If two or more software updates or SCN codings are performed during a single workshop visit, operation items 02-4762 and 02-5058 may be invoiced only on one of the workshop orders.

CHECK/TEST PROCEDURE

Connect XENTRY/DAS Diagnosis.
Check the injection quantity adjustment values of fuel injectors.
To do this, select menu item "Control units - Drive - CDI 60LS-Common Rail Diesel Injection - Actual values - Fuel system - Adjustment of Injector injection quantity".

The injection quantity adjustment values of fuel injectors in XENTRY may not start with "AAAA.... ".
1. Entries start with "AAAA.... ": Carry out work procedure.
2. Entries do not start with "AAAA.... ": End measure.

WORK PROCEDURE

Remove air filter housing on left and right.
For basic data, see AR09.10-P-1150SXI.

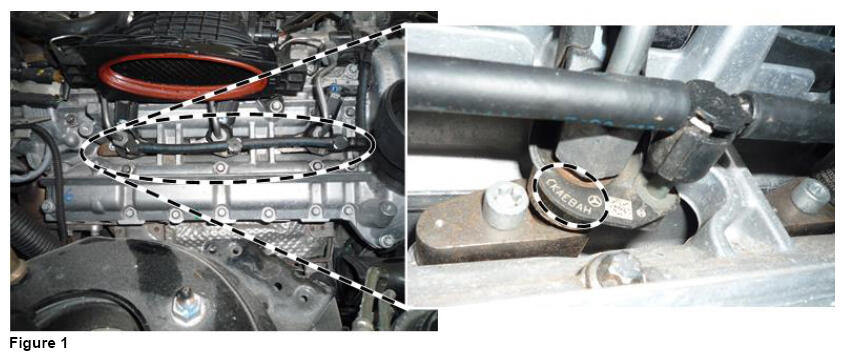

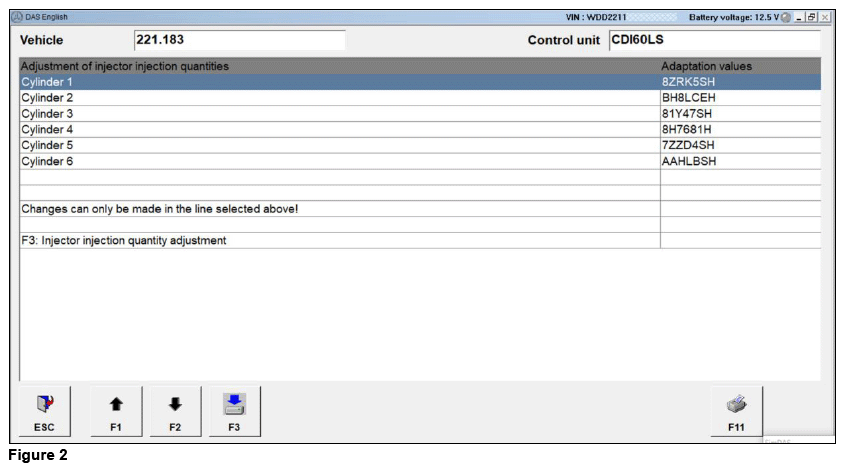

Read off injection quantity adjustment values (codings) at all six fuel injectors (Figure 1) and enter adjustment values in the respective field (Figure 2).
Disconnect XENTRY Diagnosis.
Assemble in reverse order.
NOTE: The following allowable labor operation should be used when submitting a warranty claim for this repair.

WARRANTY INFORMATION

Damage Code

Operation Number

Description

Labor Time (hrs.)

54 920 18

02-4762 ⁽¹⁾

Connect/disconnect diagnostic system (XENTRY Diagnosis)

0.1

02-5058 ⁽¹⁾

Connect/disconnect starter battery charger (with XENTRY Diagnosis connected)

0.1

12-1717

Check fuel injectors (with XENTRY Diagnosis connected) Includes: Check injection quantity adjustment values of fuel injectors

0.1

12-1718

Remove/install air filter housing (after check)
Includes: Correct the injection quantity adjustment values of fuel injectors

0.6

⁽¹⁾	Invoice operation item only once for each workshop order.

NOTE: Always check Xentry Operation Time (XOT) for the current OP-Code times. Labor times are subject to change and updates may not be reflected in this document.
