Front emergency tensioning retractor, location/task/design/ function - GF91.40-P-4000R: Notes

MODEL 230

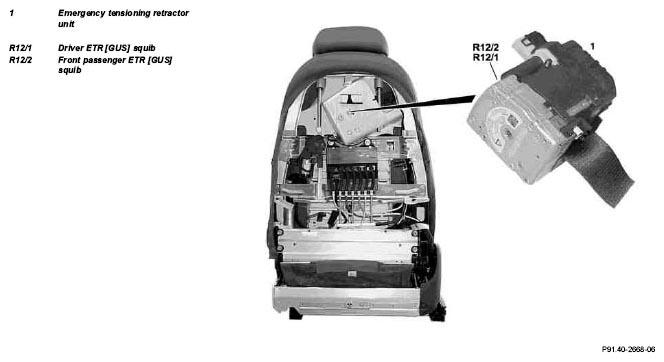

Fig 1: Locating Front Emergency Tensioning Retractor - Model 230

Courtesy of MERCEDES-BENZ USA

	Front emergency belt tensioner, location	The emergency tensioning retractor unit (1) with the driver emergency tensioning retractor squib (R12/1) is located in the backrest of the driver seat and the emergency tensioning retractor unit (1) with the front passenger emergency tensioning retractor squib (R12/2) in the backrest of the front passenger seat below the head restraint.
	Front emergency belt tensioner - task		GF91.40-P-4000-04R
	Front emergency belt tensioner - design		GF91.40-P-4000-02R
	Front emergency tensioning retractor, function		GF91.40-P-4000-03R
