Front seat ventilation motors, location/task/design/function - GF91.30-P-3100R
MODEL 230 with CODE (401a) Seat ventilation of front seats

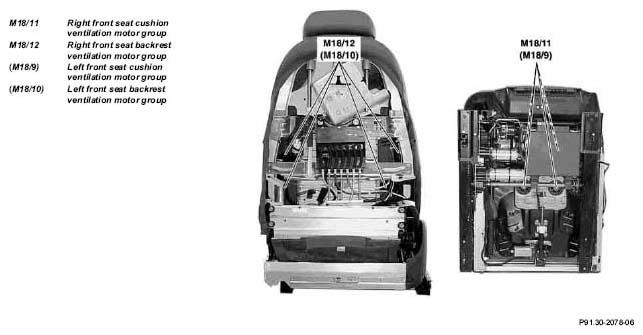

Shown on front right seat
| Front seat ventilation motors, location | The seat ventilation motors are installed in the seat cushion and backrest of the driver and passenger seats. | ||
| Front seat ventilation motors, task | Active ventilation of seat cushion and backrest. | ||
| Front seat ventilation motors, design | The Left front seat cushion ventilation motor group (M18/9) Left front seat backrest ventilation motor group (M18/10) Right front seat cushion ventilation motor group (M18/11) Right front seat backrest ventilation motor group (M18/12) each consist of four fan motors. Each motor drives a small ventilator that produces a flow of air. |
||
| Front seat ventilation motors, function | The motors in each motor group are connected in parallel. They are actuated by the relevant seat control module . The actuation signal at the control module output is boosted by a blower regulator . |
