Multiple-disc brake, location / task / design / function - GF27.51-P-5100G: Notes
TRANSMISSION 722.6

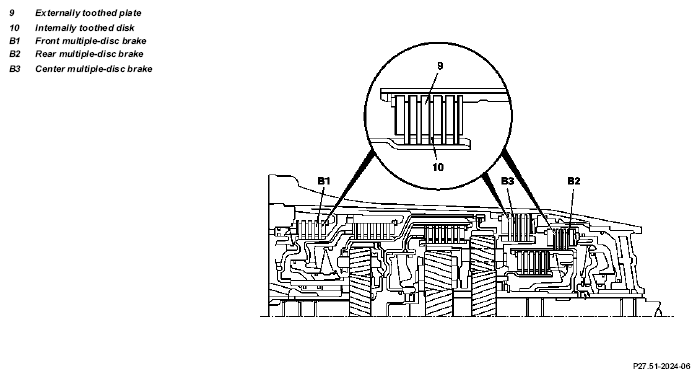

| Multiple-disc brake, location | Three multiple-disc brakes arranged as the front, center and rear multiple-disc brake (B1, B3, B2) are located in the planetary gear sets in the transmission housing. | ||
| Multiple-disc brake, task | Brace the ring gear, sun gear or planet carrier of a planetary gear set against the transmission housing in order to transmit the drive torque. | ||
| Multiple-disc brake, design | A multiple-disc brake consists of a number of internally toothed discs (10) on an internally toothed disc carrier and externally toothed discs (9) on an externally toothed disc carrier, which is rigidly connected to the transmission housing. | ||
| Multiple-disc brake, function | GF27.51-P-5100-04G |
