SRS System Wiring Repairs (TT 07/16-B)
WARNING: This page is about the Sprinter 2500, Van Cargo, which is a different variant/trim than selected.
Publication date: 2016-07-14Reference number: TT 07/16-B
SRS SYSTEM WIRING REPAIRS
COMMERCIAL VANS TECHNICAL TOPICS; JULY 2016
Reference Number(s): TT 07/16, Date of Issue:
July 14, 2016
| SPRINTER: | Model 906 |
| GROUP: | 00.19 - Electrical Vehicle, complete network |
EXPLANATION
There are strict guidelines outlined by Mercedes-Benz when performing wiring harness repairs on SRS related circuits.
ACTION

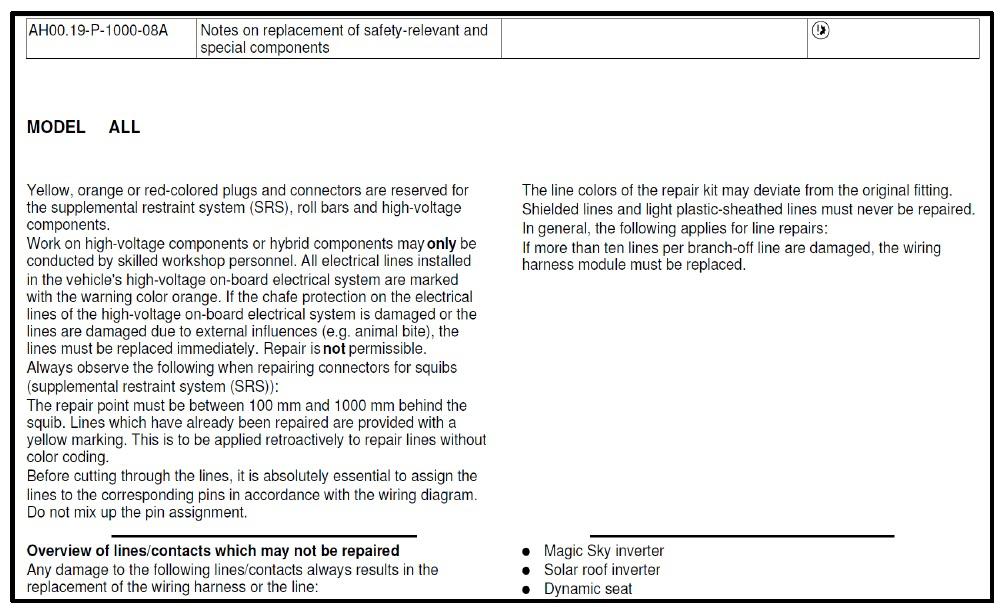

Observe WIS document AH00.19-P-1000-08A to insure factory authorized procedures are practiced.
