Float Component Description - GF27.10-D-5109HAG
TRANSMISSION 722.9 in MODEL 906
Location

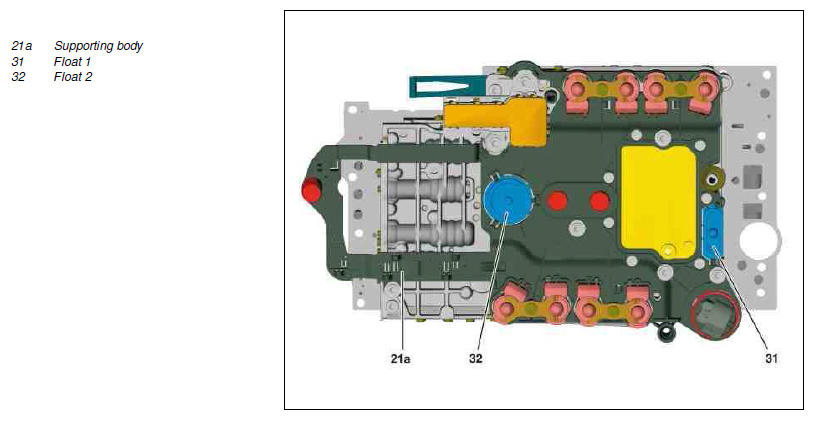

Floats 1 and 2 (31, 32) are positioned on the electric controller unit.
Task
The floats 1 and 2 (31, 32) seal the openings between the oil gallery and gear set gallery so that the rotating gear sets do not rotate directly in the oil bath as the oil level rises.
The oil level control reduces any occurrence of power loss and prevents oil from being thrown out of the transmission housing at high oil temperatures.
Function
As the oil level rises, the floats 1 and 2 (31, 32) seal the transfer ducts between the oil gallery and the gear set gallery.
