Regulating Valve, Component Description - GF27.60-D-5140HA
Transmission 722.6 in MODEL 906.111/113/131/133/135/153/155/211/213/231/233/235/253/255/611/613/631/633/635/637/653/655/657/711/713/731/733/735
Working pressure regulating valve

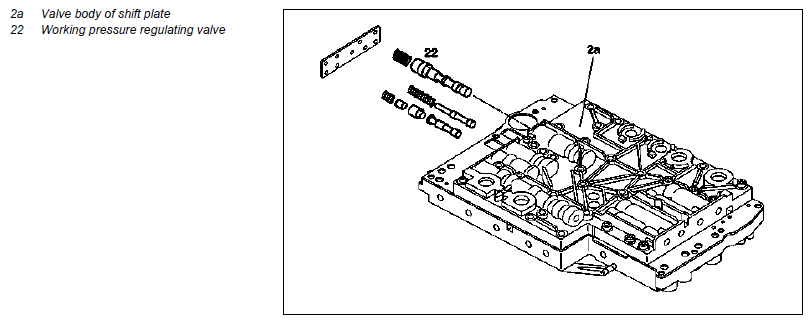

Location
The working pressure regulating valve is located in the shift plate valve body.
Task
It regulates the working pressure of the hydraulic system.

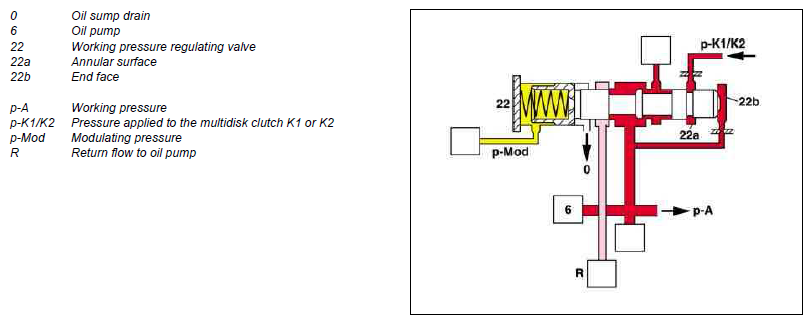

Function
The level of the working pressure is regulated at the working pressure regulating valve in a load-dependent and gear-dependent manner. A minimum level (basic pressure) is adjusted by the spring in the working pressure regulating valve.
