Regulating Valve, Component Description - GF27.60-D-5140HB
Transmission 722.6 in MODEL 906.111/113/131/133/135/153/155/211/213/231/233/235/253/255/611/613/631/633/635/637/653/655/657/711/713/731/733/735
Shift pressure regulating valve

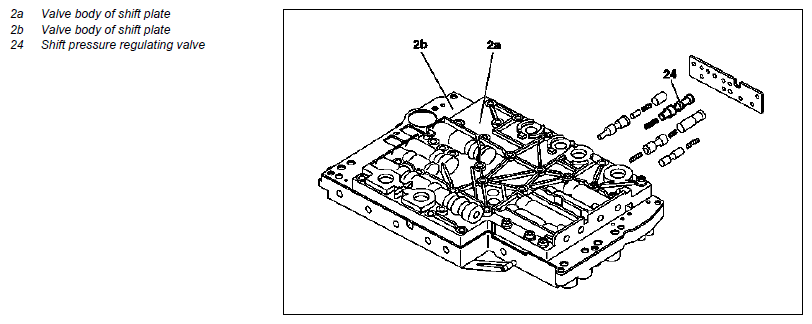

Location
The shift pressure regulating valve is located in the valve housing of the shift plate.
Task
It regulates the shift pressure.

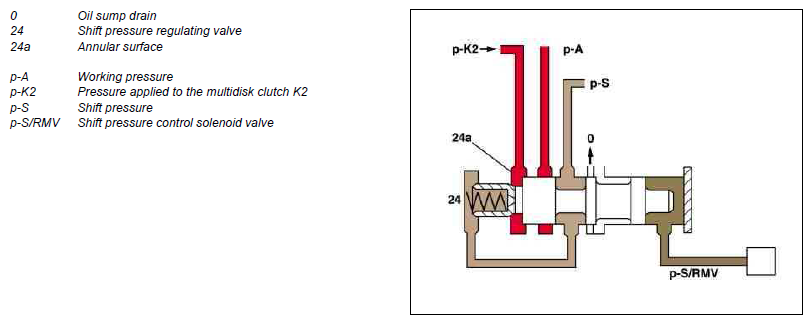

Function
The level of shift pressure is determined by the shift pressure control solenoid valve (Y3/6y2) and shift pressure regulating valve. At the shift pressure regulating valve pressure from the multidisk clutch is also applied to the annular surface K2. The shift pressure in 2nd gear is also reduced.
