Regulating Valve, Component Description - GF27.60-D-5140HD
Transmission 722.6 in MODEL 906.111/113/131/133/135/153/155/211/213/231/233/235/253/255/611/613/631/633/635/637/653/655/657/711/713/731/733/735
Shift pressure regulating valve

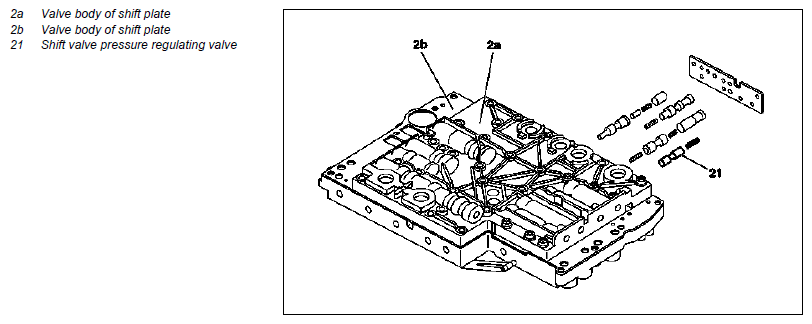

Location
The shift valve pressure regulating valve is located in the shift plate valve housing.
Task
It regulates the shift valve pressure.

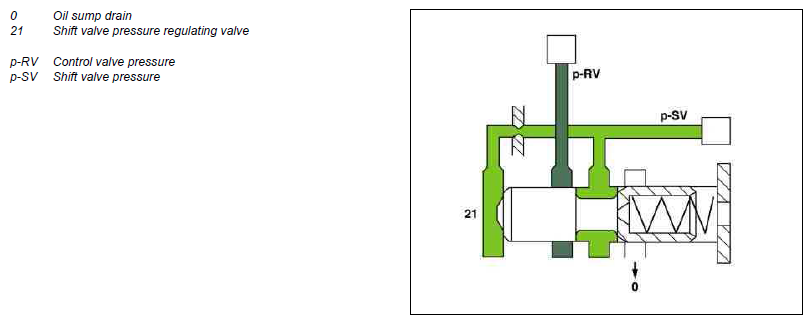

Function
The control valve pressure which is not constant is regulated to a constant shift valve pressure at the shift valve pressure regulating valve and used to supply the following solenoid valves:
- 1-2 and 4-5 shift solenoid valve (Y3/6y3)
- 3-4 shift solenoid valve (Y3/6y4)
- 2-3 shift solenoid valve (Y3/6y5)
- Torque converter lockup PWM solenoid valve (Y3/6y6)
