Shift Detent, Component Description - GF27.60-D-5162H
Transmission 722.6 in MODEL 906.111/113/131/133/135/153/155/211/213/231/233/235/253/255/611/613/631/633/635/637/653/655/657/711/713/731/733/735

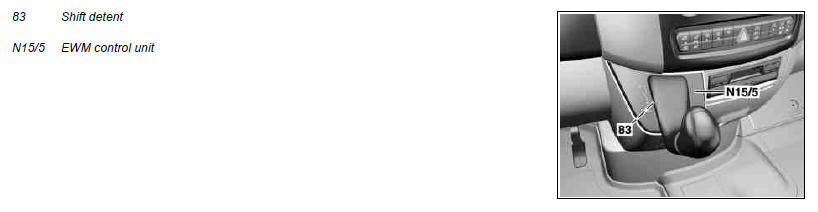

Location
The shift detent is integrated in the ESM [EWM] control unit.
Task
To fix selector lever positions in position "R", "N" and "D".
Design
The shift detent consists of:
- The locking lever rigidly connected to the selector lever
- A leaf spring clamped in the basic body
- A roller inserted in the leaf spring
Function
When the selector lever is moved into one of the selector lever positions ("R", "N", "D") a roller engages in a recess above the cams. The selector lever is locked to prevent longitudinal movement. It can now only be moved out of the respective selector lever position against the force of a leaf spring.
Sideways movement into selector lever position "D" (touch shift in direction "+" and "-") is still possible. The selector lever is freely movable in this direction. Once the touch shift is complete a retracting spring presses the selector lever into the starting position.
