Cruise Control Accelerate Function - GF30.30-D-2008H

MODEL 906.111/113/131/133/135/153/155/211/213/231/233/235/253/255/611/613/631/633/635/637/653/655/657/711/713/731/733/735 with CODE (MS1) Cruise control

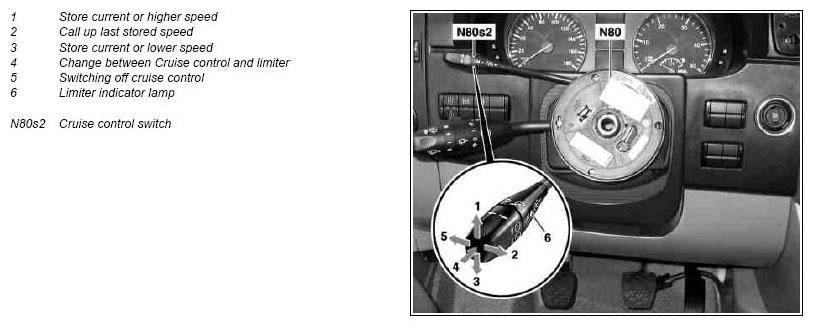

G10886439Courtesy of MERCEDES-BENZ USA

For a set Cruise control the vehicle can be accelerated in 1 km/h steps from the stored speed by actuating the Cruise control switch in the position "Store current or higher speed". The increase in speed takes place up to the maximum possible speed. Upon releasing the cruise control switch in its design position the last speed reached is stored.

Component description for the CC [TPM] switch GF30.20-D-2100H
Component description for the ESP control unit GF42.45-D-5118H
Component description for the steering column module GF54.21-D-6050H
