Front SAM Control Module With Fuse And Relay Module Connector End View (N10/1, Conn. MR1)

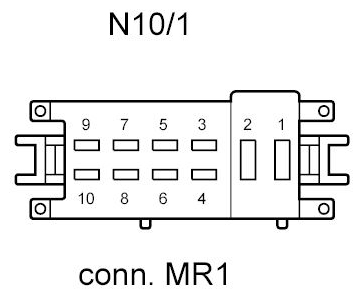

Fig 1: Front SAM Control Module With Fuse And Relay Module Connector End View (N10/1, conn. MR1)
G11072633Courtesy of MERCEDES-BENZ USA
