Supplemental restraint system function - GF91.60-P-0003FQ
MODEL 218
Up to 28.02.2013
As of 01.03.2013
Function requirements, general
- The supplemental restraint system must be programmed to the vehicle (left or right-hand drive vehicle, equipment programming and configuration parameters)
- Circuit 15R ON
The status of circuit 15 is transmitted by the electronic ignition lock control unit via the chassis CAN (up to 28.02.2013) or chassis CAN 1 (as of 01.03.2013) to the supplemental restraint system control unit.
After circuit 15R is switched off, parts of the supplemental restraint system remain active for a certain run-on time.
Power reserve: The Supplemental Restraint System control unit provides a power reserve for at least t = 300 ms if the battery has been disconnected.
Supplemental Restraint System, general information
The Supplemental Restraint System is used for occupant protection.
The belt is prevented from extending in certain situations, irrespective of the status of the supplemental restraint system.
- Passenger-side seat occupied recognition function (without code (U10) Front passenger seat with weight detection)
- Passenger-side seat occupied recognition function (with code (U10) Front passenger seat with weight detection)

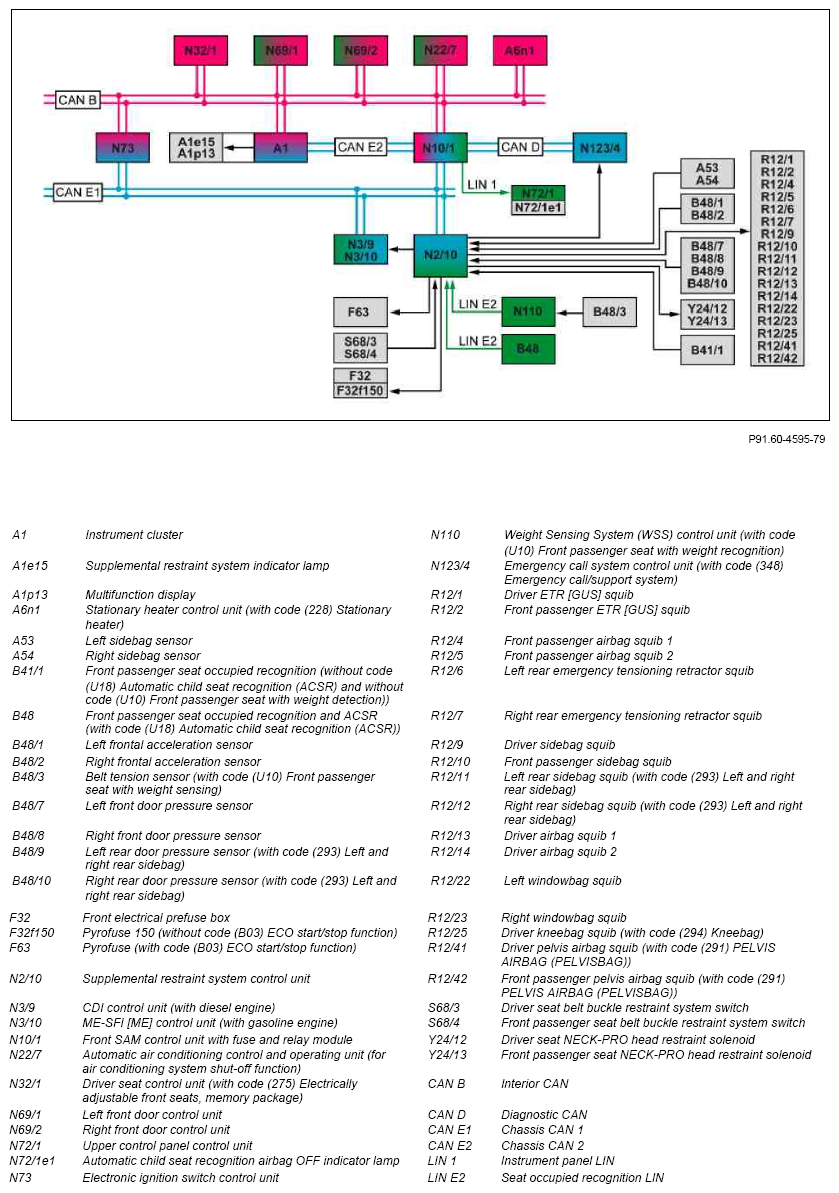

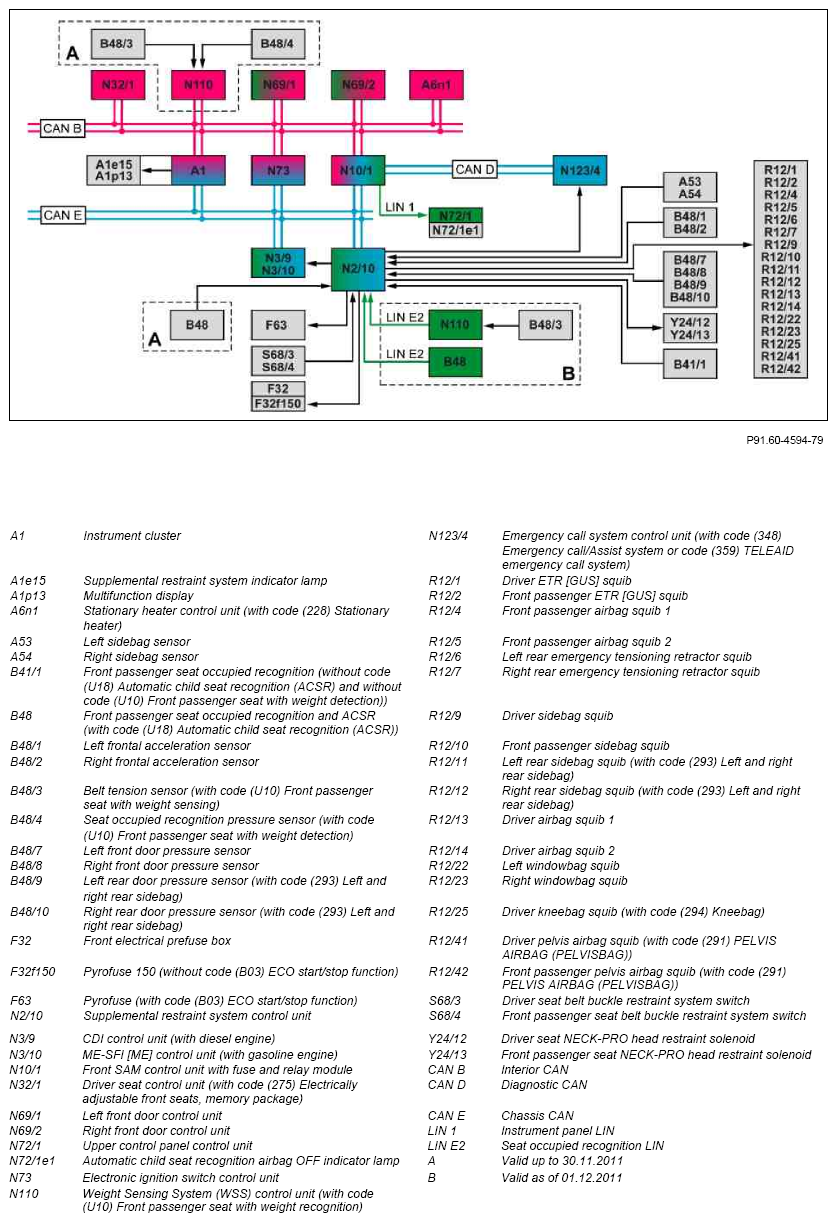

- Actuate supplemental restraint system, function
| Passenger-side seat occupied recognition function | MODEL 218 without CODE U10 (Front passenger seat with weight sensor) |
GF91.60-P-1100FQ | |
| MODEL 218 with CODE U10 (Front passenger seat with weight sensor) |
GF91.60-P-1100FQU | ||
| Actuate supplemental restraint system, function | GF91.60-P-2012FQ |
