Remove/install starter - AR15.30-P-7100GQ
ENGINE 276 in MODEL 166
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Detach ground line from battery | AR54.10-P-0003GZ | |
| Notes on battery | AH54.10-P-0001-01A | ||
| 2.1 | Remove front engine cover | ENGINE 276.9 in MODEL 166 | |
| 2.2 | Remove engine cover | ENGINE 276.8 in MODEL 166 | |
| 3.1 | Remove air filter housing | ENGINE 276.9 in MODEL 166 | |
| *BA09.10-P-1001-01M | |||
| *BA09.10-P-1002-01M | |||
| 3.2 | Remove right air filter housing | ENGINE 276.8 in MODEL 166 | |
| AR09.10-P-1150GQC | |||
| 4 | Detach shield (1) on right cylinder head | ENGINE 276.9 in MODEL 166 | |
| 5.1 | Remove oxygen sensor upstream the RH catalytic converter | ENGINE 276.9 in MODEL 166 | |
| AR07.52-P-5303GQ | |||
| 5.2 | Remove right catalytic converter | ENGINE 276.8 in MODEL 166 | |
| AR49.10-P-5500GQC | |||
| 6 | Remove shield (1) | ENGINE 276.9 in MODEL 166 | |
| 7 | Remove corresponding underfloor paneling | AR61.30-P-1001GQ | |
| 8 | Remove shield (2) | ENGINE 276.8 in MODEL 166 | AR22.10-P-1260GQC |
| ENGINE 276.9 in MODEL 166 | AR22.10-P-1260GQ | ||
| 9 | Remove shield (3) | ||
| 10 | Unfasten Lamda probe wiring holder downstream of CAT at transmission | ENGINE 276.8 in MODEL 166 | |
| 11 | Detach contact protection on circuit 30 and remove electrical line (4) for circuit 30 on starter (M1) | *BA15.30-P-1001-01J | |
| 12 | Detach electrical line (5) for circuit 50 at starter (M1) | *BA15.30-P-1002-01J | |
| 13 | Remove screw/bolts for starter (M1) | *BA15.30-P-1003-01J | |
| 14.1 | Take out starter (M1) upwards | ENGINE 276.9 in MODEL 166 | |
| 14.2 | Remove starter (M1) to the rear | ENGINE 276.8 in MODEL 166 | |
| Check | |||
| 15 | Unfasten charge air cooler and pull to the front with attached coolant lines | ENGINE 276.8 in MODEL 166 | |
| AR09.41-P-6819GQC | |||
| 16 | Check ring gear at the drive plate for wear and damage | When replacing the starter (M1) |
|

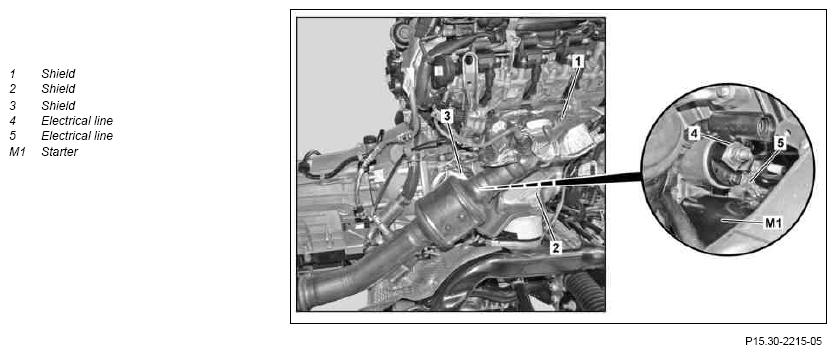

| Fig 2 | |||
| 17 | Install in the reverse order |
AIR FILTER
| Number | Designation | ENGINE 276.9 | |
|---|---|---|---|
| BA09.10-P-1001-01M | Bolt, air filter to cylinder head cover | Nm | 9 |
AIR FILTER
| Number | Designation | ENGINE 276.9 | |
|---|---|---|---|
| BA09.10-P-1002-01M | Bolt, air filter to air intake pipe support brace | Nm | 9 |
STARTER
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA15.30-P-1001-01J | Nut, connection for terminal designation 30 | Nm | 15 |
STARTER
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA15.30-P-1002-01J | Nut, connection for terminal designation 50 | Nm | 6 |
STARTER
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA15.30-P-1003-01J | Bolt, starter to crankcase | Nm | 40 |
