ME-SFI idle, function - GF07.61-P-2006M

ENGINE 275.950 in MODEL 215, 220

ENGINE 275.951 in MODEL 230 up to Model Year 8

ENGINE 275.953 in MODEL 216, 221 up to Model Year 8

ENGINE 275.954 in MODEL 230 up to Model Year 8

ENGINE 275.980 in MODEL 215, 220

ENGINE 275.981 in MODEL 230 up to Model Year 8

ENGINE 275.982 in MODEL 216, 221 up to Model Year 8

ENGINE 285.950 in MODEL 240

ENGINE 285.980 in MODEL 240

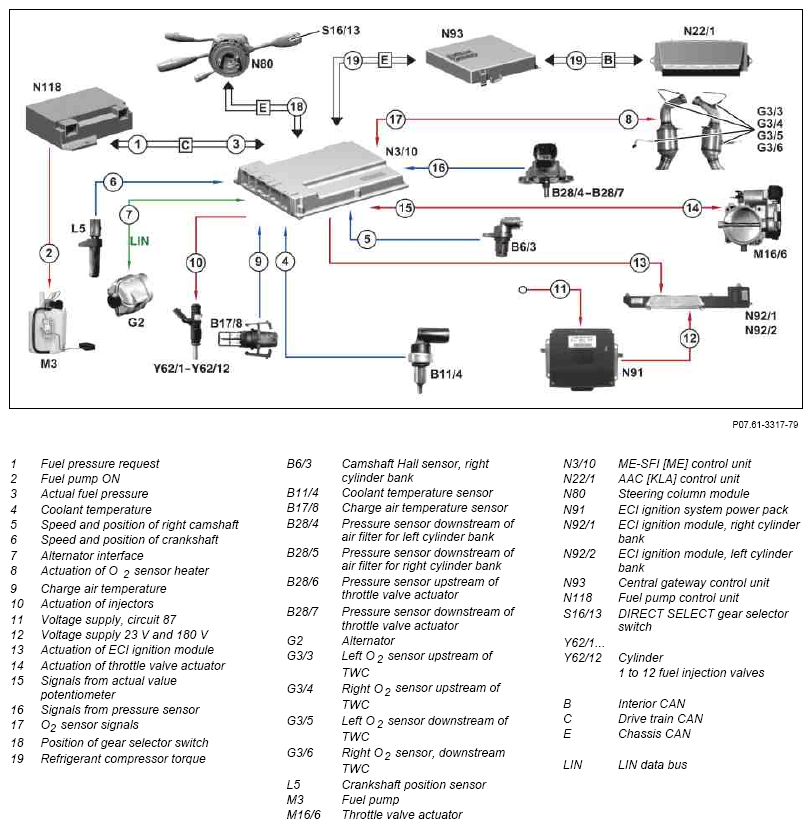

Shown is neutral for model 216, 221

Fig 1: Identifying ME-SFI Idle Function Diagram

Courtesy of MERCEDES-BENZ USA

ME fuel supply, function	Model 215, 220 with engine 275.950 Model 230 with engine 275.951/954 Model 240 with engine 285.950	GF07.61-P-3004M
	Model 215, 220 with engine 275.980 Model 230 with engine 275.981 Model 240 with engine 285.980	GF07.61-P-3004MA
	Model 216, 221 with engine 275.953/982	GF07.61-P-3004MS
ME-SFI ignition system, function		GF15.12-P-0001M
ECI ignition system, function		GF15.15-P-3000M
ME-SFI post-start enrichment, function		GF07.61-P-3011M
ME-SFI warm-up control, function		GF07.61-P-3022M
ME-SFI idle speed control, function		GF30.22-P-0003M
Fan control, function		GF07.61-P-3023M
Air injection, function		GF14.30-P-3012M
Fuel evaporation control system, function		GF47.30-P-3013M
Purge control valve actuation, function		GF07.61-P-3013M
ME-SFI electronic accelerator, function		GF30.20-P-3012M
Electronic accelerator pedal emergency running mode, function		GF30.20-P-4026M
ME-SFI lambda control, function		GF07.61-P-4022M
Engine oil information, function		GF07.61-P-3026M
Diagnosis fault memory, ME-SFI function		GF07.61-P-2004M
ME-SFI catalytic converter heating-up, function		GF07.61-P-3032M
ME-SFI fuel pump actuation, function		GF07.61-P-3012M
ME-SFI alternator interface function		GF07.61-P-3003M
Correction programming, function		GF07.61-P-3031M
Turbocharging, function		GF09.00-P-2000M
Purge system with leak test function	For	GF47.30-P-3016M
