Remove/install bellows - AR46.40-P-9998NKB

MODEL 117, 156, 176, 242, 246

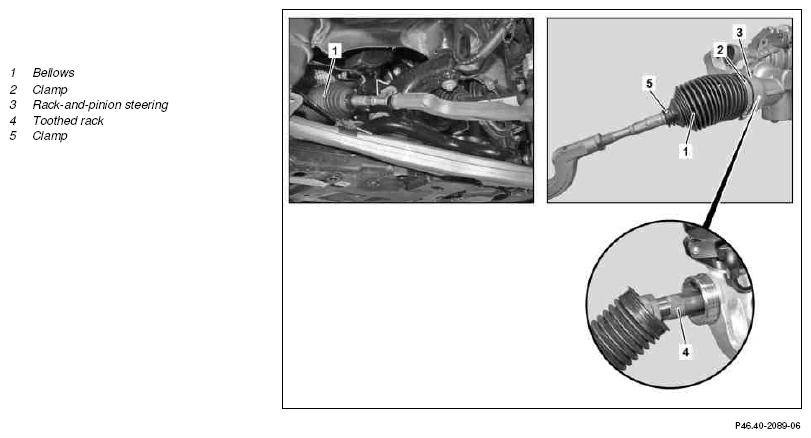

Fig 1: Bellows Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rack-and-pinion steering (3)		AR46.20-P-0600NKB
2	Remove outer tie rod		AR46.40-P-0200NKB
3	Remove clamps (2, 5) from boot (1)	Replace clamps (2, 5).
4	Detach boot (1) from rack-and-pinion steering (3)	Check boot (1) for damage, replace if necessary.
5	Check toothed rack (4)	If corrosion or damage to the toothed rack (4) is determined, the rack-and-pinion steering (3) has to be replaced.
6	Install in the reverse order
