Remove/Install Quantity Control Valve - AR07.03-P-0003CO

ENGINE 642 in MODEL 166, 204, 207, 212, 218, 292

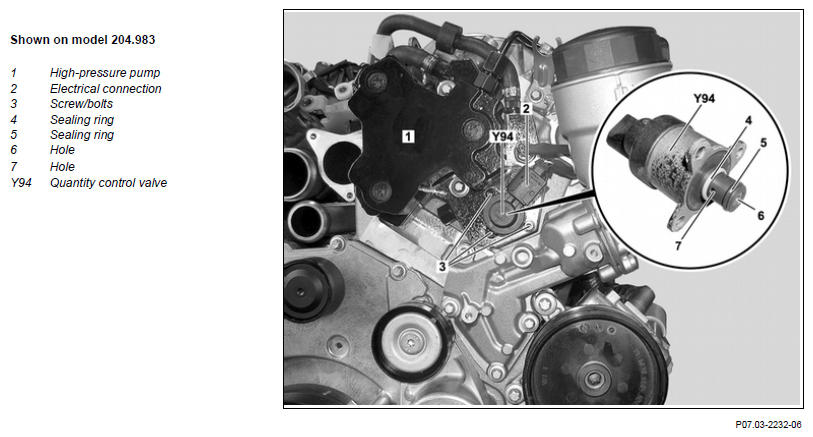

Shown on model 204.983

G12083130Courtesy of MERCEDES-BENZ USA
  Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
REMOVING Remove
1 Remove engine cover Engine 642 in model 166, 207, 212, 218, 292
2 Unclip pipework for Active Roll Stabilization on impact plate Engine 642 in model 166
with code 468 (ACTIVE CURVE SYSTEM)
IMPORTANT The impact plate is installed in front of the belt drive.

3 Remove impact plate Engine 642 in model 166, 207, 212, 218, 292
4 Disconnect electrical connection (2) at quantity control valve (Y94)
5 Clean high-pressure pump (1) in the area of the quantity control valve (Y94) with a cold cleaning solvent IMPORTANT Then dry with compressed air.
Cold degreasing agent/cold cleaning solvent HAKU 1025-920
*BR00.45-Z-1051-04A
6 Loosen screws/bolts (3) IMPORTANT Remove particles of varnish and dirt from around quantity control valve (Y94).
7 Remove screw/bolt (3) NOTES
Do not pry out quantity control valve (Y94) with a tool and do not tilt.
The housing flange and quantity control valve (Y94) will be damaged otherwise.
IMPORTANT Pull quantity control valve (Y94) out of housing flange by hand using rotary movements.
IMPORTANT Collect exuded fuel with an absorbent rag

8 Check flange hole and sealing surface of housing flange for dirt, cracks and scratches and clean if necessary NOTES
Remove any paint and dirt particle, particularly in the flange bore.
Proper operation cannot be ensured otherwise.

9 Take off sealing rings (4, 5) When using the old quantity control valve (Y94)
10 Suction off any dirt particles from the holes (6, 7) in the quantity control valve (Y94) When using the old quantity control valve (Y94)
INSTALLING Install
11 Lightly grease new sealing rings (4, 5) with special grease and fit to quantity control valve (Y94) Do not damage sealing rings (4, 5) during assembly.
The sealing rings will become leaky otherwise. Special grease
*BR00.45-Z-1036-06A
12 Fit quantity control valve (Y94), and push it into the housing flange and align by rotating IMPORTANT The quantity control valve (Y94) must be installed up to the face of the housing flange.
13 Thread in screw/bolts (3) by hand
14 Fully tighten screw/bolts (3) TORQUE SPECIFICATION Bolt, quantity control valve to high-pressure pump housing flange *BA07.16-P-1018-01C
15 Connect electrical connection (2) to quantity control valve (Y94)
WARNING
16
Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.
Check fuel system for leaks with engine running
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
17 Install impact plate Engine 642 in model 166, 207, 212, 218, 292
18 Unclip pipework for Active Roll Stabilization on impact plate Engine 642 in model 166 with code 468 (ACTIVE CURVE SYSTEM)
19 Install engine cover Engine 642 in model 166, 207, 212, 218, 292
20
REFER TO SELF-DIAGNOSTIC SYSTEMS
Read out and clear fault memory using the diagnostic system   AD00.00-P-2000-04A
COMMON RAIL DIESEL INJECTION SYSTEM (CDI)

Number Designation Engine 642
BA07.16-P-1018-01C Bolt, quantity control valve to high-pressure pump housing flange Nm 7
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1036-06A Special grease A 001 989 42 51 10
BR00.45-Z-1051-04A Cold degreasing agent/cold cleaning solvent HAKU 1025-920 Chemische Werke Kluthe GmbH
