Remove/Install Starter - AR15.30-S-7100EG

Model 447, 448 with engine 274

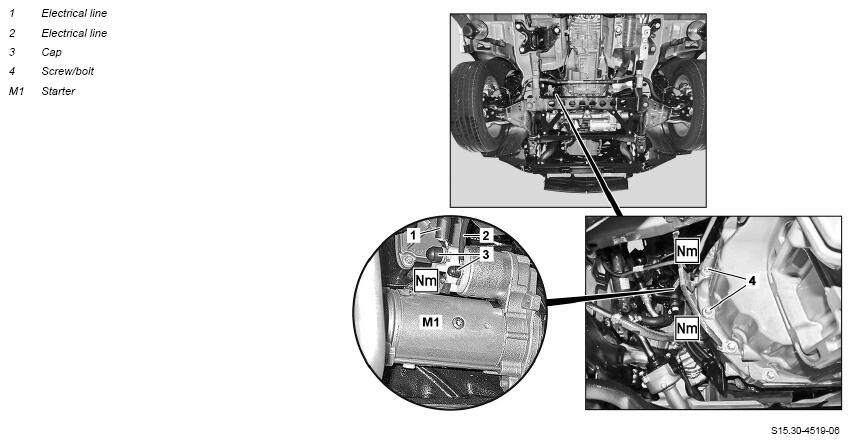

Fig 1: Engine Starter Components Location - Model 447 With Engine 274

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Remove/install
1	Remove ground line from battery		AR54.10-S-0003E
2	Remove lower engine compartment paneling		AR61.20-S-1105E
3	Remove covering caps (3)
4	Remove electrical lines (1, 2) at starter (M1)	Nut, line to starter	*BA15.30-Z-1002-01KOW
5	Remove screw/bolts (4)	Bolt, starter to crankcase	*BA15.30-Z-1001-01KOW
6	Remove starter (M1) from below
7	Install in the reverse order

STARTER

Number	Designation		Engine 274 in model 447, 448
BA15.30-Z-1001-01KOW	Bolt, starter to crankcase	Nm	40

STARTER

Number	Designation			Engine 274 in model 447, 448
BA15.30-Z-1002-01KOW	Nut, line to starter	M6	Nm	6
		M8	Nm	15
