Remove/install folding table - AR91.10-P-1930NKB
MODEL 242 with CODE 30P (Stowage Space package)
MODEL 246 with CODE 30P (Stowage Space package)
| Remove/install | |||
| 1 | Adjust front seat forward and set backrest to upright position | ||

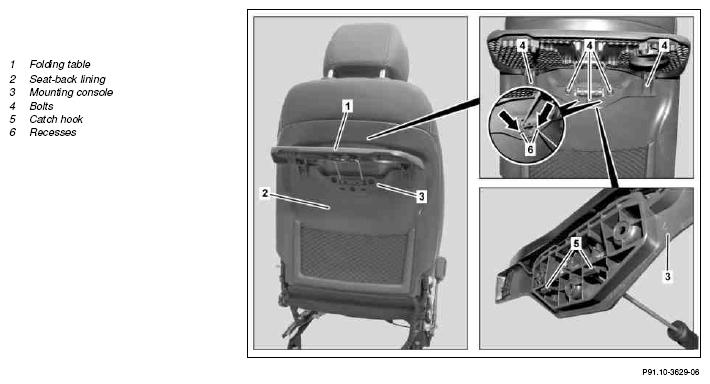

| 2 | Fold out folding table (1) | ||
| 3 | Remove screws/bolts (4) | ||
| 4 | Release catch hooks (5) of mounting console (3) through cutouts (6) (arrow) with a suitable screwdriver | Otherwise there is a risk of breakage of the catch hooks (5). |
|
| 5 | Remove folding table (1) with mounting console (3) | ||
| 6 | Install in the reverse order |
