Removing, installing windowbag - AR91.60-P-0693NKB

MODEL 176

MODEL 242

MODEL 246

Shown on left side of vehicle on model 246

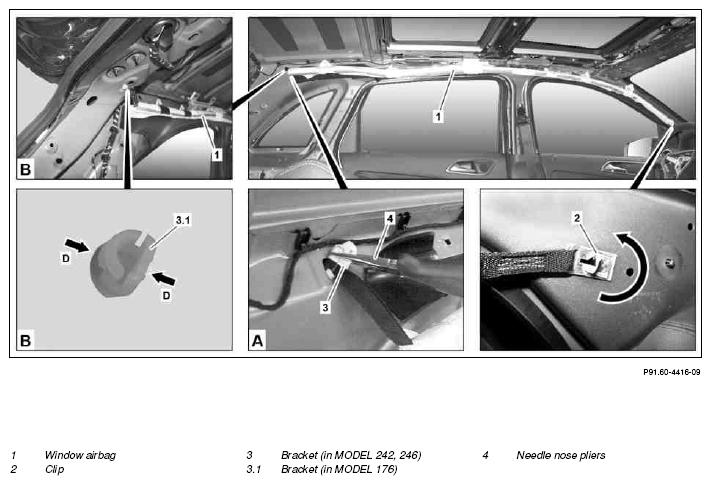

Fig 1: Identifying Windowbag Remove/Install Components - Shown On Model 246 (1 Of 3)
G10250894Courtesy of MERCEDES-BENZ USA

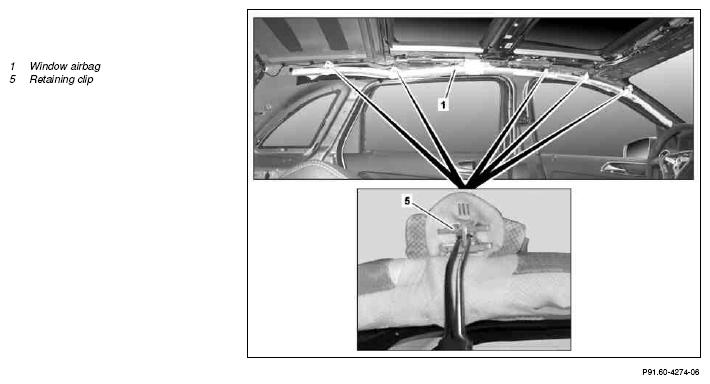

Fig 2: Identifying Windowbag Remove/Install Components - Shown On Model 246 (2 Of 3)
G10250895Courtesy of MERCEDES-BENZ USA

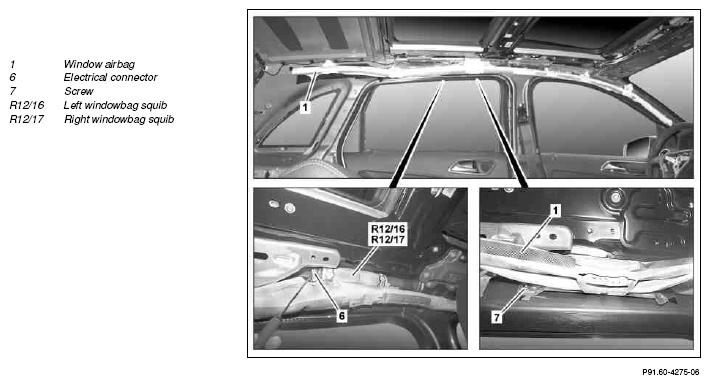

Fig 3: Identifying Windowbag Remove/Install Components - Shown On Model 246 (3 Of 3)
G10250896DANGERNOTESIMPORTANTREMOVINGINSTALLINGNOTESIMPORTANTIMPORTANTIMPORTANTIMPORTANTINSTALLATION IMPORTANTTORQUE SPECIFICATIONIMPORTANTREFER TO SELF-DIAGNOSTIC SYSTEMSCourtesy of MERCEDES-BENZ USA
DANGER Risk of injury  during testing and repair operations related to pyrotechnical components Do not expose pyrotechnical components to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such components. AS91.00-Z-0008-01A
NOTES Note on functional reliability of windowbag   AH91.60-P-0693-01A
IMPORTANT Information, assessment and legal requirements when working with, handling and storing pyrotechnical components   AH91.00-Z-0000-10A
REMOVINGINSTALLING Remove/install
1 Switch off ignition and remove transmitter key from electronic ignition lock control unit
2 Disconnect battery ground line   AR54.10-P-0003NKB
3.1 Remove headliner MODEL 242, 246
3.2 Lower headliner MODEL 176
  AR68.30-P-4300NKA
NOTES Caution is required when lowering the headliner.
Otherwise the headliner may be damaged.

4 Release clamp (2) from front check strap of windowbag (1) IMPORTANT Release clamps (2) by turning in direction of arrow.
5.1 Guide bracket (3) on rear check strap of windowbag (1) out of body MODEL 242, 246
IMPORTANT Guide bracket (3) out of feedthrough for check strap using suitable needle nose pliers (4). See Fig 1.

5.2 Unclip bracket (3.1) on rear check strap of windowbag (1) from body MODEL 176
IMPORTANT Push bracket (3.1) together (arrows D) and unclip from body. See Fig 1.

6 Remove retaining clips (5) IMPORTANT Push retaining clips (5) together as shown and release.
7 Release and disconnect electrical connector (6) at left windowbag squib (R12/16) or right windowbag squib (R12/17) INSTALLATION IMPORTANT Electrical connector (6) must audibly engage when being plugged in.
8 Unscrew screw/bolt (7) TORQUE SPECIFICATION Bolt, windowbag unit to roof frame *BA91.60-P-1006-01F
9 Detach windowbag (1) IMPORTANT If the windowbag (1) is replaced, the defective windowbag (1) has to be disposed of properly.
10 Install in the reverse order
11 Connect diagnostic system, read out fault memory and check supplemental restraint system (SRS)
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04A
AIRBAG

Number Designation MODEL 176, 242, 246
BA91.60-P-1006-01F Bolt, windowbag unit to roof frame Nm 6
