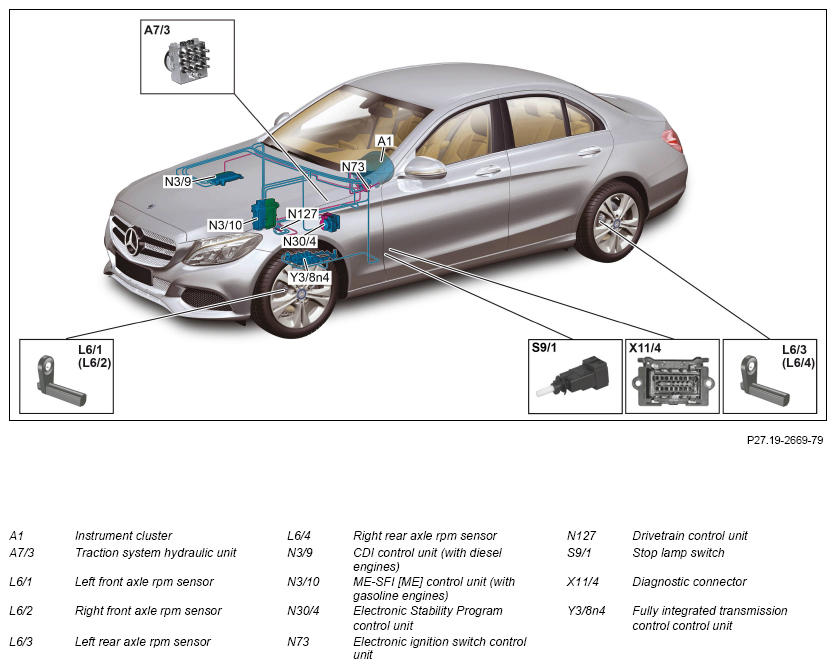

(Overview Of System Components, Automatically Controlled All-Wheel Drive (4MATIC) - GF28.00-P-9998AVF)
Model 205 with transmission 722.961/965
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Component description for CDI control unit | Engine 651.9 in model 205 with transmission 722.965 with code 494 (US version) N3/9 |
GF07.16-P-6000OLD | |
| Engine 651 in model 205 (except 205.012/212) with transmission 722.965 except code 494 (US version) N3/9 |
GF07.16-P-6000OLE | ||
| Component description for ME-SFI (ME) control unit | Model 205 with engine 276.8 with transmission 722.961 N3/10 |
GF07.61-P-6000MMV | |
| Component description for Electronic Stability Program control unit | Model 205 (except 205.012/212) with transmission 722.961/965 N30/4 |
GF42.45-P-5119RF | |
| Component description for the electronic ignition lock control unit | Model 205 with transmission 722.961/965 up to model year 2019 N73 |
GF80.57-P-6001RF | |
| Drivetrain control unit, component description | Model 205 (except 205.012/212) with engine 651.9 with transmission 722.965 N127 |
GF54.21-P-2141OLD | |
| Model 205 with engine 276.8 with transmission 722.961 N127 |
GF54.21-P-2141RF | ||
| Component description for fully integrated transmission control unit | Y38n4 | GF27.60-P-5165AHE | |
| Table of contents for function description, automatically controlled all-wheel drive (4MATIC) | GF28.00-P-0999AVF |
