Remove/Install Lower Engine Compartment Lining - Ar61.20-P-1105GW

Model 463

as of model year 2016 up to model year 2019 except code ZQ0 (G 500 4x4 ²  )

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Remove/install
1	Lift vehicle with vehicle lift	Lifting vehicle with pit lift or workshop jack Model 463 as of model year 2016 up to model year 2019 except code ZQ0 (G 500 4x42 )	AR00.60-P-1000-01G

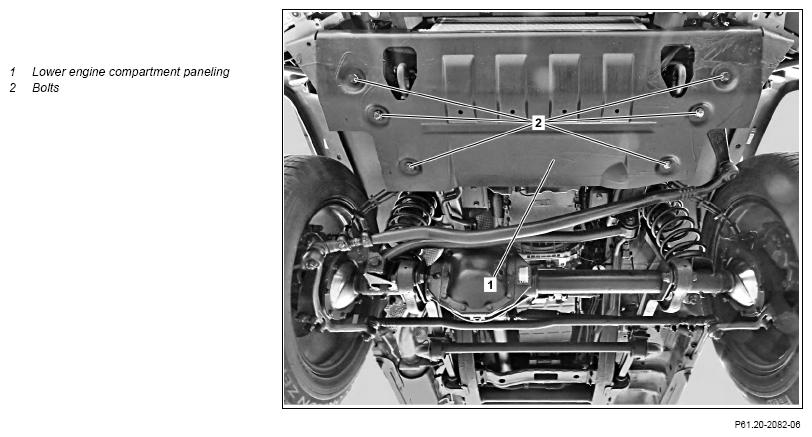

2	Remove screws (2)
3	Remove lower engine compartment paneling	Aid of helper required.
4	Install in the reverse order
