Rear Door Control Unit, Basic Function - GF72.29-P-9892A

MODEL ALL (CAR)

Overview

This document contains the following information:

• Location
• Networking
• Controlling functions

Location

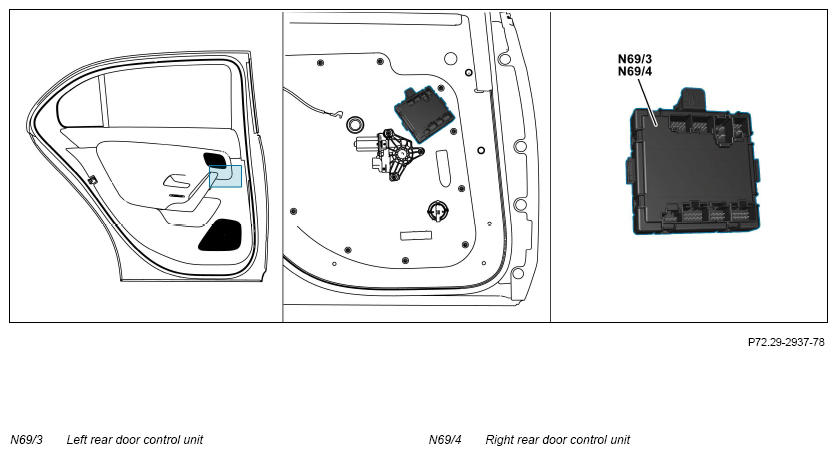

The rear door control units are located in each case in the door module behind the door trim.

Networking

Depending on the vehicle, the rear door control units can be differently connected to the network architecture of the vehicle:

• Via the interior CAN (CAN B)
• In the master-slave combination via the door LIN and the front door control units

Controlling functions

The rear door control units have the following functions:

• Power windows
• Central locking
• Roller sunblinds of side windows (vehicles with roller sunblinds in rear doors)
• Power closing function (vehicles with power closing function)

For the implementation of the respective function, the rear door control units evaluate - among other things - the following information:

• Terminal status of terminal 15
• Lock/unlock central locking system request
• PRE-SAFE® adjustment request (vehicles with PRE-SAFE® system)
• Convenience feature request
• Rain closing function request
• Crash signal
• Operating requests
• Status of microswitches in door locks
• Status of power closing function microswitches (vehicles with power closing function)

The rear door control units actuate different actuators in the respective rear door and/or transmit the corresponding information and requests to the respectively affected systems. This includes:

• Door status (open/closed)
• Seat heating and/or seat climate control request (vehicles with seat heating and/or seat climate control in rear)
• Open/close roof roller sunblind request (vehicles with panoramic sliding sunroof)
• Power window actuation
• Rear side window roller sunblind motor actuation (vehicles with roller sunblinds in rear doors)
• Power closing motor actuation (vehicles with power closing function)

The rear door control units also protect the respective power window motor against overheating.

The software simulates temperature characteristics depending on the operating time. The parameters required for this purpose were determined in tests and are stored in the respective rear door control unit.

If the overheating protection is triggered, the actuation of the affected power window motor is blocked for a min. cooling time.

Exception:

The overheating protection function does not operate during roof reversal (after a blockage is detected).
