Remove/Install Camshaft Hall Sensor - AR15.10-P-2000CD

ENGINES 651 in MODELS 166, 172, 204, 207, 212, 218, 221

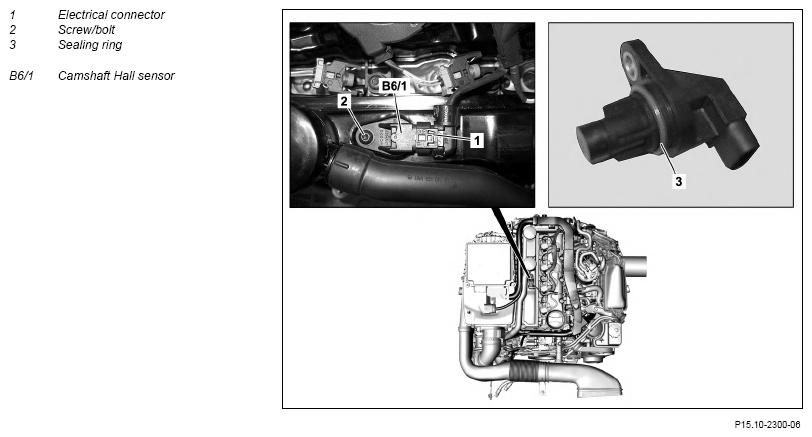

Fig 1: Camshaft Hall Sensor Component Location - Engine 651

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove cylinder head cover trim
2	Disconnect electrical connector (1) at camshaft Hall sensor (B6/1)
3	Unscrew screw/bolt (2)		*BA15.10-P-1002-03H
4	Take out camshaft Hall sensor (B6/1)	Installation:  Replace sealing ring (3).
5	Install in the reverse order
