Remove/Install Crankshaft Hall Sensor - AR15.12-P-2136GQ

ENGINE 276 in MODEL 166, 251, 292

Shown on model 166 with engine 276.9

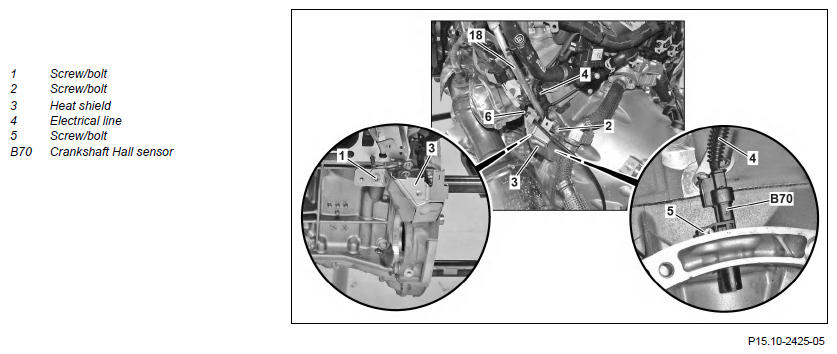

Fig 1: Crankshaft Hall Sensor Component Location - Engine 276
G11971733REMOVINGINSTALLINGTORQUE SPECIFICATIONREFER TO SELF-DIAGNOSTIC SYSTEMSWARNINGCourtesy of MERCEDES-BENZ USA
  Risk of death  when touching components on vehicles with high-voltage on-board electrical system Do not touch damaged or defective components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers) must not  carry out any work on high-voltage on-board electrical systems. AS54.00-Z-0001-01A
  Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
  Note on high-voltage on-board electrical system   AH54.00-P-0010-01A
  Evaluation of high-voltage components   AH54.00-P-6500-01SXH
REMOVINGINSTALLING Remove/install
1 Perform enable for the high voltage on-board electrical system Engine 276 in model 166.063 AR54.10-P-1150GQA
2 Remove partition wall between wheel wells Engine 276 in model 251 AR62.30-P-2400RT
3 Remove windshield wiper system Engine 276.8 in model 251 AR82.30-P-2400RT
4.1 Remove front upper engine cover Engine 276.9 in model 166, 251
4.2 Remove upper engine cover Engine 276.8 in model 166, 251, 292
5.1 Remove ME-SFI [ME} control unit and bracket for control unit Engine 276.9 in model 166, 251 AR07.08-P-7008GQ
5.2 Remove left-hand air filter housing Engine 276.8 in model 166, 251, 292 AR09.10-P-1150GQC
6 Remove rear heat shield on the left from ATL Engine 276.8 in model 166, 251, 292 AR49.10-P-5500GQC
7 Remove heat shield holder on the left behind the ATL Engine 276.8 in model 166, 292
8 Remove left catalytic converter Engine 276.8 in model 251 AR49.10-P-5500GQC
9 Remove screw/bolts (1, 2) and heat shield (3) for crankshaft Hall sensor (B70)
10 Disconnect electrical line (4) on crankshaft Hall sensor (B70)
11 Remove screw/bolt (5) and crankshaft Hall sensor (B70) upwards TORQUE SPECIFICATION Bolt, crankshaft Hall sensor to crankcase *BA15.10-P-1001-03E
12 Install in the reverse order
13
REFER TO SELF-DIAGNOSTIC SYSTEMS
Read out fault memory using the diagnostic system and clear if necessary   AD00.00-P-2000-04A
WARNING
14
Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.
Conduct engine test run and check the engine for oil loss
Secure vehicle to prevent it from starting off by itself. Wear buttoned-up and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
POSITION SENSOR

Number Designation Engine 276
BA15.10-P-1001-03E Bolt, crankshaft Hall sensor to crankcase Nm 8
