Service Campaign 2021060017 - Update Power Electronics Control Unit Software (P-SC-2021060017)

Publication date: 2021-08-13
Reference number: P-SC-2021060017
Supersedes refnos: 2021060017

SERVICE CAMPAIGN 2021060017 - UPDATE POWER ELECTRONICS CONTROL UNIT SOFTWARE

SERVICE CAMPAIGN BULLETIN

Reference Number(s): P-SC-2021060017, Date of Issue: August 13, 2021

MERCEDES-BENZ:

MY15-17 166 and 222 (GLE-Class and S-Class)

SERVICE INFORMATION

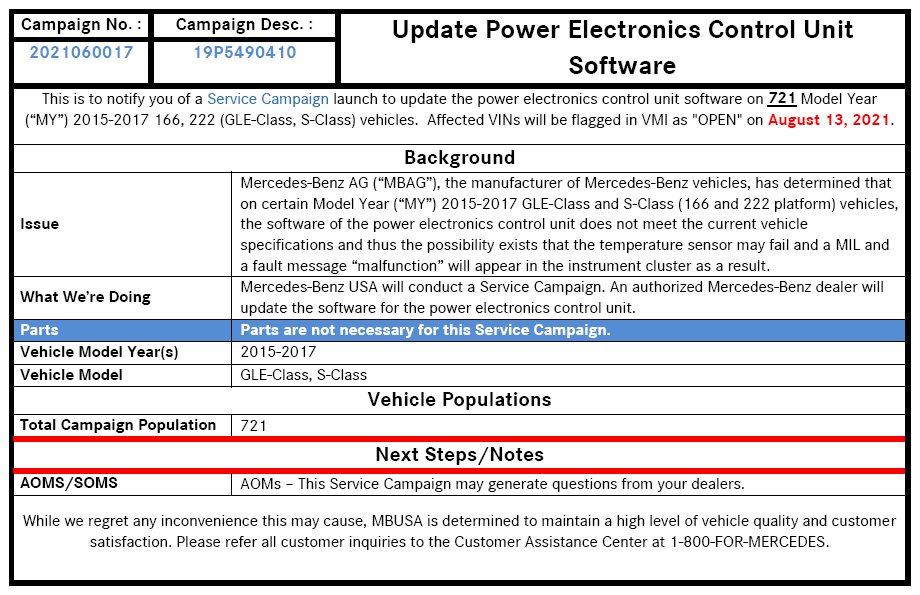

IMPORTANT NEW SERVICE CAMPAIGN LAUNCH INFORMATION

Please note that all customer inquiries should be directed to the Customer Assistance Center at 1-800-FOR-MERCEDES.

Sincerely,

Gregory Gunther

Department Manager, Vehicle Compliance & Analysis

Campaign No. 2021060017, August 2021

TO: ALL MERCEDES-BENZ CENTERS

SUBJECT

Model GLE-Class, S-Class (166, 222 platform) vehicles

Model year 2015-2017

Update Power Electronics Control Unit Software

Mercedes-Benz AG ("MBAG"), the manufacturer of Mercedes-Benz vehicles, has determined that on certain Model Year ("MY") 2015-2017 GLE-Class and S-Class (166 and 222 platform) vehicles, the software of the power electronics control unit does not meet the current vehicle specifications and thus the possibility exists that the temperature sensor may fail and a MIL and a fault message "malfunction" will appear in the instrument cluster as a result. An authorized Mercedes-Benz dealer will update the software for the power electronics control unit.

Prior to performing this Campaign:

VMI must always be checked before performing campaigns to verify that the campaign is required on a specific vehicle. Always check for any other open campaigns, and perform accordingly.
Please review the entire Campaign bulletin and follow the repair procedure exactly as described.

Approximately 721 vehicles are affected.

Order No. P-SC-2021060017

This bulletin has been created and maintained in accordance with MBUSA-SLP S423QH001, Document and Data Control, and MBUSA-SLP S424HH001, Control of Quality Records.

Update power electronics control unit software

Model 166 and 222

NOTE:

Use Xentry 03/21 with all associated patches or higher.
Follow the steps exactly as described in Xentry.
Connect battery charger (battery voltage >12.5V).
Ensure all electrical consumers are switched-off.
In the event of software/SCN update issues, contact Star Diagnosis User Help Desk via. XSF ticket.
Refer to Star Diagnosis System (SDS) Best Practices Guide.
If XENTRY Diagnosis is already connected to the vehicle, start with work procedure step 2.

If two or more software updates or SCN codings are performed during one workshop visit, invoice operation items (02-4762) and (02-5058)

only once per workshop order.

WORK PROCEDURE

Connect XENTRY Diagnosis.
Update (N129/1) Power electronics (SG-EM) control unit software.
To do this, select menu item "Quick test view → (N129/1) Power electronics (SG-EM) → Adaptations → Control unit update → Updating of control unit software".

Then follow the user guidance in XENTRY Diagnosis.
Disconnect XENTRY Diagnosis.

NOTE: The following allowable labor operation should be used when submitting a warranty claim for this repair:

WARRANTY INFORMATION

Operation: (02-9334) Update power electronics control unit software (with XENTRY Diagnosis connected)

(02-4762*) Connect/disconnect vehicle diagnosis system (XENTRY Diagnosis)

(02-5058*) Connect/disconnect starter battery charger (with XENTRY Diagnosis connected)

WARRANTY INFORMATION

Damage Code

Operation Number

Labor Time (hrs.)

54 904 10

02-9334

0.1

02-4762⁽¹⁾

0.1

02-5058⁽¹⁾

0.1

⁽¹⁾	Operation item may only be invoiced once for each workshop order!

NOTE: Always check ASRA for the current OP-Code times. Labor times are subject to change and updates may not be reflected in this document.
