Thermal Management, Function - GF07.10-P-1012MNG
ENGINE 276.9 in MODEL 166 as of model year 2016
Function requirements for thermal management, general points
- Circuit 87M (engine management ON)
- Engine runs
Thermal management, general
The coolant temperature of the engine is regulated with the thermal management controlled by the ME-SFI [ME] control unit (N3/10). The following advantages arise from this:
- Rapid reaching of the optimal operating temperature
- Reduction of the exhaust emissions
- Fuel saving (up to about 4%)
- Improved heating comfort
Thermal management controlling is dependent on the following sensors and signals:
- Coolant temperature sensor (B11/4), coolant temperature
- Intake air temperature sensor (B17), intake air temperature
- Intake manifold intake air temperature sensor (B17/1), intake air temperature
- Pressure sensor downstream of throttle valve (B28/7), engine load
- Accelerator pedal sensor (B37), accelerator pedal actuation (how quickly and how far → vehicle type quiet or sporty)
- Crankshaft Hall sensor (B70), engine rpm
- Temperature sensor in the ME-SFI [ME] control unit
- Instrument cluster (A1), speed via the chassis CAN 2 (CAN E2) and chassis CAN 1 (CAN E1)
- SAM control unit (N10), outside temperature via the interior CAN (CAN B) and chassis CAN 1
- Automatic air conditioning control and operating unit (N22/7), air conditioning system status over interior CAN and chassis CAN 1
- Electronic Stability Program control unit (N30/4), wheel speed via the chassis CAN 1
- Fully integrated transmission control unit (Y3/8n4), status of transmission oil temperature via the drive train CAN (CAN C)
Function sequence for thermal management
The thermal management is described in the following points:
- Function sequence for heating the two-disk thermostat
- Function sequence for fan control
- Function sequence for radiator shutters
- Function sequence for overheating protection
Function sequence for heating the two-disk thermostat
The temperature of the coolant can be controlled variably by the heatable two-disk thermostat. There is a coolant thermostat heating element (R48) in the two-disk thermostat which is actuated a required by the ME-SFI [ME] control unit using a ground signal.
The two-disk thermostat can take four positions:
- Full throttling
- Bypass mode
- Mixed-fuel mode
- Radiator operation

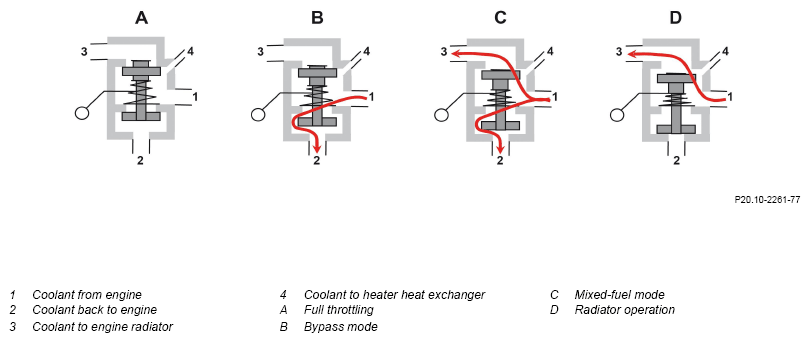

Positions of two-disk thermostat
Full throttling
- Heating element deenergized, coolant temperature < 65°C The coolant thermostat is closed.
Bypass mode
- Heating element deenergized, coolant temperature < 100°C
- Heating element deenergized, coolant temperature < 65°C
According to the meaning of optimal in-engine friction and therefore fuel saving the coolant temperature can be increased to about 105°C in partial-load range (heating element deenergized).
Therefore the friction power can be improved due to a higher engine oil temperature and the mixture formation improved due to less fuel condensation on the cylinder barrels.
Mixed-fuel mode
- Heating element deenergized, coolant temperature 100 up to 115°C
- Heating element deenergized, coolant temperature 65 up to 100°C
Radiator operation
- Heating element deenergized, coolant temperature < 115°C
- Heating element deenergized, coolant temperature < 100°C
Here for example the following mean.:
- 10% fan motor off "OFF"
- 20% fan motor "ON", minimum rpm
- 90% fan motor "ON", maximum rpm
For faulty actuation the fan motor rotates at its maximum rotational speed (fan emergency mode).
Its status is transmitted to the fan motor as a ground signal over the actuation line.
The automatic air conditioning control and operating unit transmits its status via the interior CAN and chassis CAN 1 to the ME-SFI [ME] control unit.
Delayed fan switch off
The fan motor runs on for "ignition OFF" for up to 6 minutes if the coolant temperature or the engine oil temperature has exceeded the prescribed maximum values.
The duty cycle of the pulse width modulated signal for delayed fan switch off is a maximum of 40%.
If the on-board electrical system voltage drops down a lot, the delayed fan switch off is suppressed.
Through heating the two-disk thermostat (heating element energized) opens this and the coolant is led through the engine radiator.
For wide open throttle the two-disk thermostat is very quickly opened.
The coolant temperature can be lowered to about 80°C whereby best possible engine cooling and knock-free combustion are achieved.
Above an about 115°C coolant temperature the two-disk thermostat is always fully open independent of the flowrate through the heating element (limp-home function).
Function sequence for fan control
The ME-SFI [ME] control unit actuates the fan motor (M4/7). Here the target fan speed is prescribed over a pulse width modulated signal by the ME-SFI [ME] control unit.
The duty cycle of the pulse width modulated signal is 10 to 90%.
Function sequence for radiator shutters
The radiator shutters is closed in order to lower the fuel consumption (thorough having a lower aerodynamic drag). This also causes reduced engine compartment cooling off and a dampening of engine external noise emissions to the outside.
The radiator shutters actuator (Y84) is actuated by the ME-SFI [ME] control unit after the engine start by means of a ground signal. In this way the vacuum in the vacuum unit is built up and the radiator shutters closed by means of a linkage.
The radiator shutters are opened when the coolant temperature reaches 106°C and closed again at 98°C.
Function sequence for overheating protection
In a case of thermal overload the overheating protection protects the catalytic converters against engine damage and overheating damage. If the coolant or intake air temperature is too high, the ME-SFI [ME] control unit no longer fully opens the throttle valve actuator (M16/6), depending on engine speed and load. The ME-SFI [ME] control unit shortens the injection period of the fuel injectors (Y76) according to the lower air mass.
Furthermore the heating element in the coolant thermostat is actuated by the ME-SFI [ME] control unit so that the two-disk thermostat is fully opened and the whole coolant is cooled over the engine radiator.
If the coolant temperature is too high, a warning message is shown in the multifunction display (A1p13) on the instrument cluster (). To do this, the ME-SFI control unit sends the corresponding signal via chassis CAN 1 and chassis CAN 2 to the instrument cluster.
| Electrical function schematic for heat management | PE07.10-P-2712-97NBG | ||
| Overview of system components for gasoline injection and ignition system with direct injection | GF07.70-P-9998MNG |
