Remove/Install Catalytic Converter Temperature Sensor - AR07.04-P-0004OGR
ENGINE 642 in model 166, 292
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Remove/install | |||
| 1 | Remove right air filter housing | AR09.10-P-1150OGR | |
| 2 | Remove respective section of the underfloor paneling | AR61.30-P-1001GQ | |

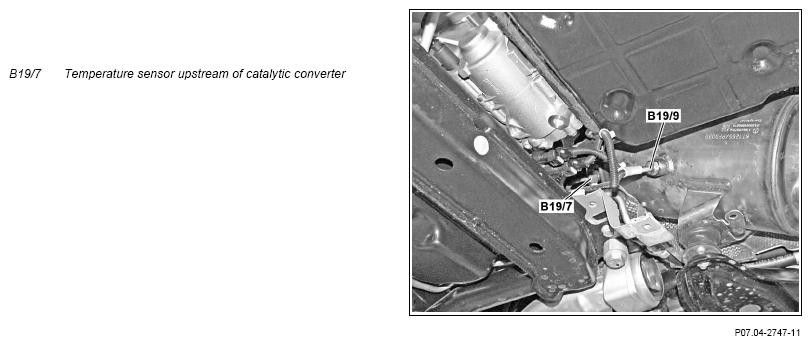

| 3 | Disconnect electrical connection for the temperature sensor upstream of catalytic converter (B19/7) | ||
| 4 | Remove temperature sensor upstream of catalytic converter (B19/7) | Align the temperature sensor upstream of catalytic converter (B19/7) by turning in such a way that the distance to the heat shield is adequate. The electrical feed line can get damaged otherwise. |
*BA07.04-P-1001-01G |
| Paste, hot lubrication 1 kg, DBL 6879.20 | *BR00.45-Z-1005-06A | ||
| 5 | Install in the reverse order | ||
| Check | |||
| Risk of accident from vehicle starting off by itself when ENGINE running. Risk of injury (bruises and burns) resulting from working on the ENGINE while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Check leaktightness of exhaust system when ENGINE is running |
SENSORS
| Number | Designation | ENGINE 642 | |
|---|---|---|---|
| BA07.04-P-1001-01G | Temperature sensor at catalytic converter | Nm | 45 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1005-06A | Paste, hot lubrication 1 kg, DBL 6879.20 | A 000 989 76 51 |
