Remove/Install Combustion Chamber Pressure Sensor - AR07.04-P-0065OGR
ENGINE 642 in model 166, 292
Shown on MODEL 292

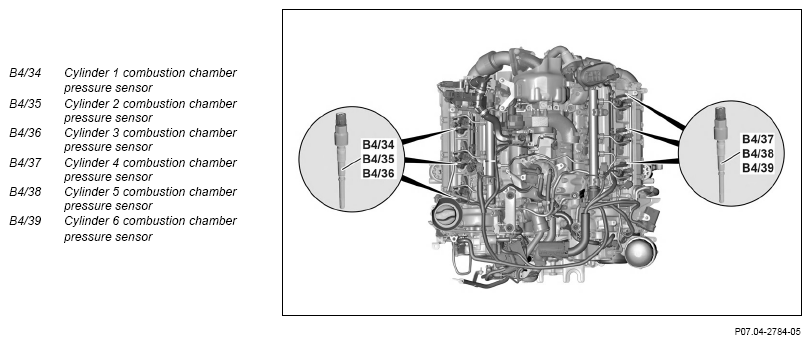

Fig 1: Combustion Chamber Pressure Sensor Components Location - Engine 642 In Model 166 (Shown On Model 292)
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove ENGINE cover | ||
| 2 | Remove ENGINE air intake duct downstream of air filter | AR09.10-P-8130OGR | |
| 3 | Remove left and right air filter housing | AR09.10-P-1150OGR | |
| 4 | Remove left or right sound dampener on cylinder head cover | ||
| 5 | Replace the combustion chamber sensor (B4/34, B4/35, B4/36, B4/37, B4/38, B4/39) | ENGINE 642 in model 166, 292 ENGINE 642 in model 166 with code 927 (EU6 emissions standard) |
AR07.04-P-0065-01LFD |
| *BA07.04-P-1018-01G | |||
| 6 | Connect diagnostic system and read out fault memory; delete if necessary | ||
| AD00.00-P-2000-04A | |||
| 7 | Install in the reverse order |
SENSORS
| Number | Designation | ENGINE 642 | ||
|---|---|---|---|---|
| BA07.04-P-1018-01G | Combustion chamber pressure sensor to cylinder head | Stage 1 | Nm | 5 |
| Stage 2 | ∠° | 90 | ||
