Remove/Install Fuel Rail Pressure Sensor - AR07.16-P-1055OGR
ENGINE 642 in model 166, 292
| Risk of explosion
caused by fuel igniting. Risk of injury to skin and eyes caused by fuel spraying out at high pressure |
Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized. |
AS07.16-Z-0001-01A | |
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Open ENGINE hood and raise to vertical position | ENGINE 642 in model 166, 292 ENGINE 642 in model 166 |
AR88.40-P-1000GQ |
| 2 | Remove ENGINE air intake duct downstream of air filter | AR09.10-P-8130OGR | |
| 3 | Remove right section of the bulkhead | ||
| 4 | Remove heat shield of ATL | ||
| 5 | Remove rear ENGINE suspension lug on the right cylinder head cover | *BA01.30-P-1006-01S | |
| 6 | Disconnect the electrical connection on high pressure fuel pressure sensor (B4/6) | ||

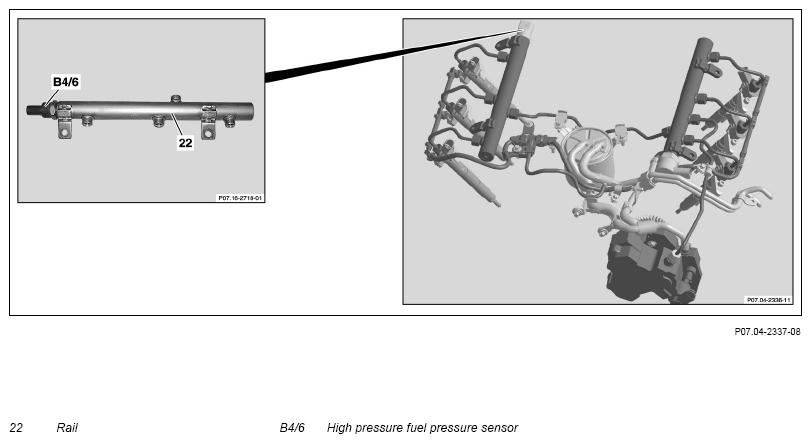

| 7 | Remove high pressure fuel pressure sensor (B4/6) from rail (22) | Ensure maximum cleanliness while working on the diesel injection system and clean connecting points before opening. Otherwise, the planetary gear set may be damaged. |
*BA07.16-P-1013-01C |
| 8 | Close connection from high pressure fuel pressure sensor (B4/6) | Close connection from high pressure fuel pressure sensor (B4/6) for protection against soiling immediately after removal with a suitable The diesel injection system may be damaged otherwise. |
Fig 2 |
| 9 | Install in the reverse order |
CYLINDER HEAD
| Number | Designation | ENGINE 642 | |
|---|---|---|---|
| BA01.30-P-1006-01S | Bolt, lifting eye to cylinder head | Nm | 14 |
COMMON RAIL DIESEL INJECTION SYSTEM (CDI)
| Number | Designation | ENGINE 642 | |
|---|---|---|---|
| BA07.16-P-1013-01C | Rail pressure sensor to rail | Nm | 70 |
