Remove/Install Quantity Control Valve - AR07.03-P-0003CO

ENGINE 642 in model 166, 204, 207, 212, 218, 292

Shown on model 204.983

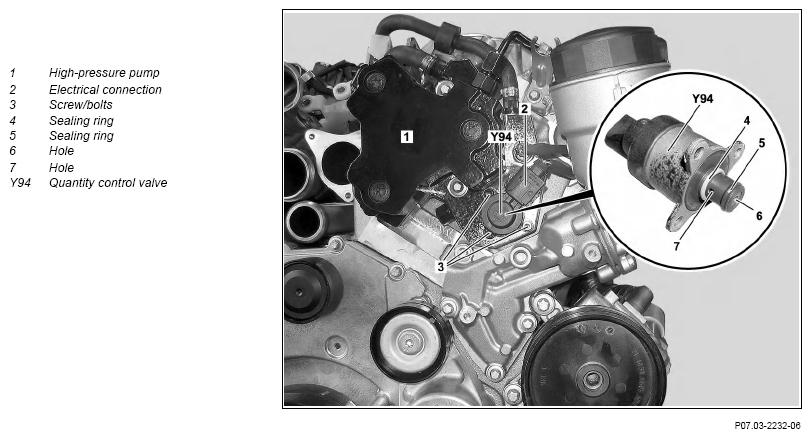

Fig 1: Quantity Control Valve Components Location - Engine 642 In Model 166 (Shown On Model 204.983)

Courtesy of MERCEDES-BENZ USA

	Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Remove
1	Remove ENGINE cover	ENGINE 642 in model 166, 207, 212, 218, 292
2	Unclip pipework for Active Roll Stabilization on impact plate	ENGINE 642 in model 166 with code 468 (ACTIVE CURVE SYSTEM) The impact plate is installed in front of the belt drive.
3	Remove impact plate	ENGINE 642 in model 166, 207, 212, 218, 292
4	Disconnect electrical connection (2) at quantity control valve (Y94)
5	Clean high-pressure pump (1) in the area of the quantity control valve (Y94) with a cold cleaning solvent	Then dry with compressed air. Cold degreasing agent/cold cleaning solvent HAKU 1025-920	*BR00.45-Z-1051-04A
6	Loosen screws/bolts (3)	Remove particles of varnish and dirt from around quantity control valve (Y94).
7	Remove screw/bolt (3)	Do not pry out quantity control valve (Y94) with a tool and do not tilt. The housing flange and quantity control valve (Y94) will be damaged otherwise. Pull quantity control valve (Y94) out of housing flange by hand using rotary movements. Collect exuded fuel with an absorbent rag.
8	Check flange hole and sealing surface of housing flange for dirt, cracks and scratches and clean if necessary	Remove any paint and dirt particle, particularly in the flange bore. Proper operation cannot be ensured otherwise.
9	Take off sealing rings (4, 5)	When using the old quantity control valve (Y94)
10	Suction off any dirt particles from the holes (6, 7) in the quantity control valve (Y94)	When using the old quantity control valve (Y94)
	Install
11	Lightly grease new sealing rings (4, 5) with special grease and fit to quantity control valve (Y94)	Do not damage sealing rings (4, 5) during assembly. The sealing rings will become leaky otherwise. Special grease	*BR00.45-Z-1036-06A
12	Fit quantity control valve (Y94), and push it into the housing flange and align by rotating	The quantity control valve (Y94) must be installed up to the face of the housing flange.
13	Thread in screw/bolts (3) by hand
14	Fully tighten screw/bolts (3)	Bolt, quantity control valve to high-pressure pump housing flange	*BA07.16-P-1018-01C
15	Connect electrical connection (2) to quantity control valve (Y94)
	Risk of accident  from vehicle starting off by itself when ENGINE running. Risk of injury  (bruises and burns) resulting from working on the ENGINE while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
16	Check fuel system for leaks with ENGINE running
17	Install impact plate	ENGINE 642 in model 166, 207, 212, 218, 292
18	Unclip pipework for Active Roll Stabilization on impact plate	ENGINE 642 in model 166 with code 468 (ACTIVE CURVE SYSTEM)
19	Install ENGINE cover	ENGINE 642 in model 166, 207, 212, 218, 292
20	Read out and clear fault memory using the diagnostic system
			AD00.00-P-2000-04A
