Remove/Install Front Door Module - AR72.10-P-0900GQ

Model 166

except code Z04 (Light armoring)

except code Z05 (B5 armoring on special protection version)

Model 292

Shown on model 166.004

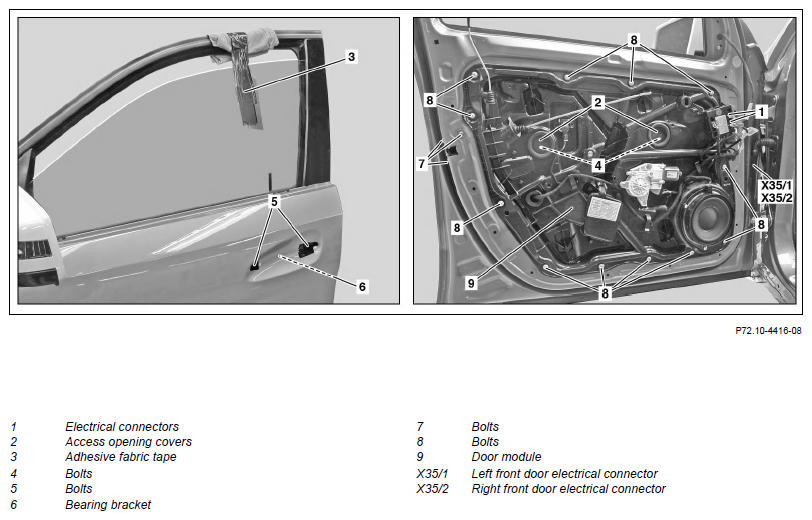

Fig 1: Front Door Module Components Location - Model 166 Except Code Z04; Z05 (Shown On Model 166.004)
G14133332DANGERDANGERNOTESREMOVINGINSTALLINGNOTESIMPORTANTCourtesy of MERCEDES-BENZ USA
DANGER Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
DANGER Risk of injury  from contusions to hands if window glass is not secured Secure window to prevent it from falling down. AS67.00-Z-0002-01A
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVINGINSTALLING Remove/install
1 Switch on ignition and store transmitter key outside of transmission range (min. 2 m)
2 Remove front door lining Model 166
with code 221 (Central locking)
with code 583 (Front power windows (2 doors) with convenience feature)
except code Z04 (Light armoring)
except code Z05 (B5 armoring on special protection version)
Model 292
AR72.10-P-1000GQ
3 Separate electrical connections (1)
4 Remove outside door handle on front door   AR72.10-P-2400GZ
5 Open covers in assembly opening (2)
6 Slacken bolts (4, 5) Bolts (4) in assembly openings must be accessible.
7 Close side window and secure with textile adhesive tape (3) NOTES
The bonding surfaces must be dry and free of grease and dust.
Otherwise the side window can fall down and be damaged.
IMPORTANT To prevent adhesive residues on paint, place rag beneath.

8 Push bearing bracket (6) toward front and unhook
9 Remove bolts (7, 8)
10 Disconnect battery ground line   AR54.10-P-0003GZ
11 Disconnect left front door electrical connector (X35/1) or right front door electrical connector (X35/2)
12 Unclip electrical connector for left front door electrical connector (X35/1) or right front door electrical connector (X35/2) from door
13 Remove door module (9) from door until electrical wiring harness on front door is accessible
14 Remove front door electrical wiring harness
15 Remove door module (9)
16 Install in the reverse order
