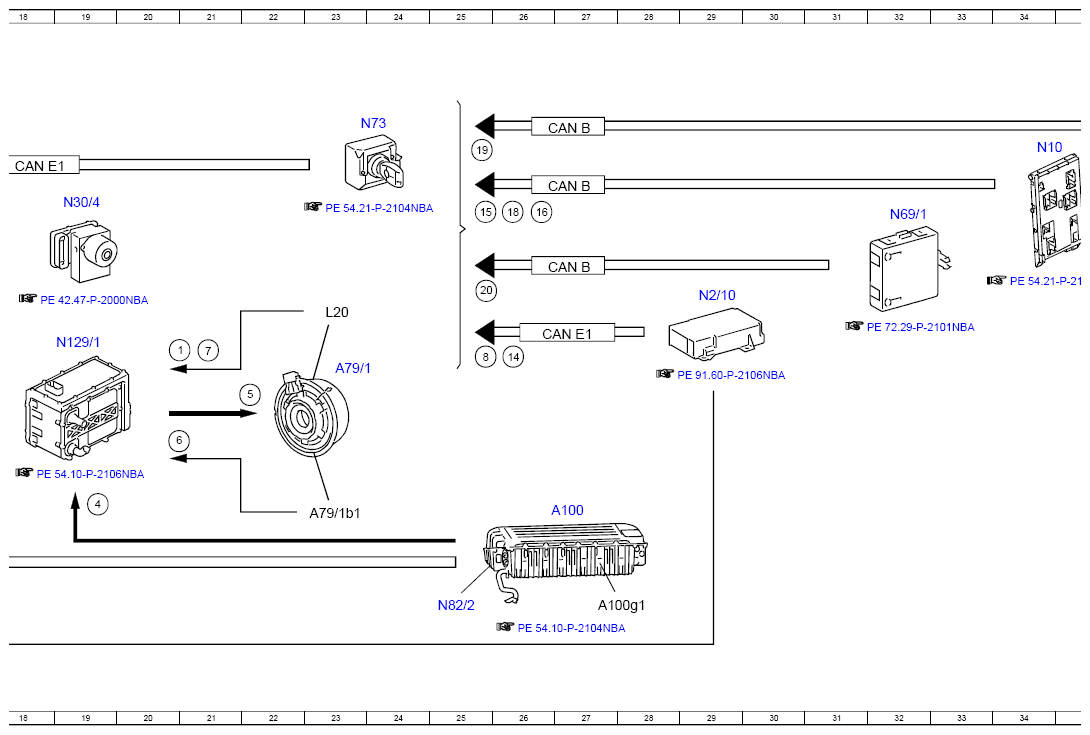

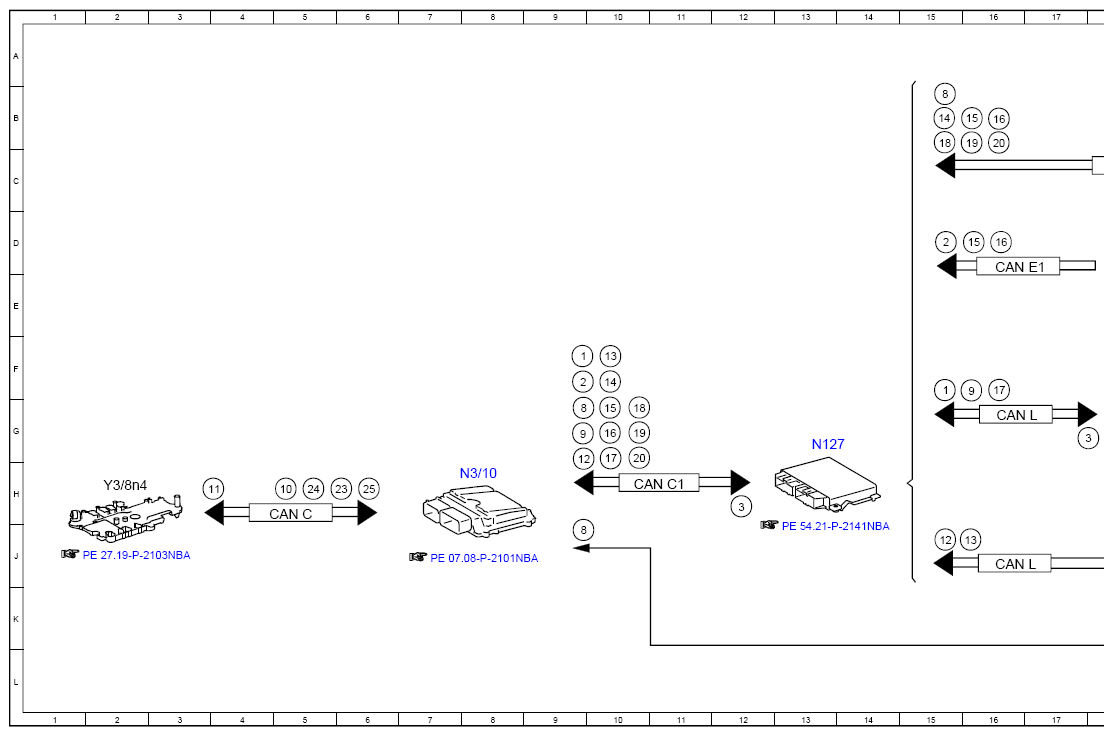

Electrical Function Schematic For Automatic Engine Stop - PE08.30-P-2053-97NAH
ENGINE 276.821 in MODEL 166
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Electric machine rpm, signal | 20F |
| 1 | Electric machine rpm, signal | 9F |
| 1 | Electric machine rpm, signal | 15F |
| 10 | Wet clutch, status | 5H |
| 11 | Wet clutch, request | 3H |
| 12 | High-voltage battery voltage, signal | 15J |
| 12 | High-voltage battery voltage, signal | 9H |
| 13 | High-voltage battery temperature, signal | 16J |
| 13 | High-voltage battery temperature, signal | 10F |
| 14 | Seat belt buckle restraint system switch, status | 10F |
| 14 | Seat belt buckle restraint system switch, status | 26F |
| 14 | Seat belt buckle restraint system switch, status | 15B |
| 15 | Engine stop prohibited, request | 10G |
| 15 | Engine stop prohibited, request | 16D |
| 15 | Engine stop prohibited, request | 25D |
| 15 | Engine stop prohibited, request | 16B |
| 16 | Engine start, request | 10G |
| 16 | Engine start, request | 16D |
| 16 | Engine start, request | 26D |
| 16 | Engine start, request | 16B |
| 17 | Electric machine motor torque, signal | 10H |
| 17 | Electric machine motor torque, signal | 16F |
| 18 | Engine hood anti-theft alarm system switch, status | 10G |
| 18 | Engine hood anti-theft alarm system switch, status | 26D |
| 18 | Engine hood anti-theft alarm system switch, status | 15B |
| 19 | Air conditioning, status | 10G |
| 19 | Air conditioning, status | 25C |
| 19 | Air conditioning, status | 16B |
| 2 | Wheel speed, signal | 15D |
| 2 | Wheel speed, signal | 9F |
| 20 | Door rotary tumbler switch, status | 10G |
| 20 | Door rotary tumbler switch, status | 25E |
| 20 | Door rotary tumbler switch, status | 16B |
| 23 | Transmission oil temperature, signal | 6H |
| 24 | Electric auxiliary oil pump, status | 5H |
| 25 | Gear range, status | 6H |
| 3 | Discharge voltage and discharge current, request | 17G |
| 3 | Discharge voltage and discharge current, request | 12H |
| 4 | Discharge current, energy flow | 19H |
| 5 | Discharge current for motor operation, energy flow | 22F |
| 6 | Electric machine temperature, signal | 20G |
| 7 | Electric machine rotor position, signal | 21F |
| 8 | Crash, signal | 9G |
| 8 | Crash, signal | 25F |
| 8 | Crash, signal | 15B |
| 8 | Crash, signal | 9J |
| 9 | Electric machine, status | 16F |
| 9 | Electric machine, status | 9G |
| A100 | High-voltage battery module | 27H |
| A100g1 | High-voltage battery | 27K |
| A79/1 | Electric machine | 23F |
| A79/1b1 | Electric machine temperature sensor | 23H |
| CAN B | Interior CAN | 27C |
| CAN B | Interior CAN | 27D |
| CAN B | Interior CAN | 27B |
| CAN C | Drive train CAN | 5H |
| CAN C1 | Engine CAN | 10H |
| CAN E1 | Chassis CAN 1 | 16D |
| CAN E1 | Chassis CAN 1 | 27F |
| CAN E1 | Chassis CAN 1 | 18C |
| CAN L | Hybrid CAN | 16G |
| CAN L | Hybrid CAN | 16J |
| L20 | Electric machine rotor position sensor | 23E |
| N10 | SAM control unit | 34C |
| N127 | Drivetrain control unit | 13G |
| N129/1 | Power electronics control unit | 19F |
| N2/10 | Supplemental restraint system control unit | 29E |
| N22/7 | Automatic air conditioning control and operating unit | 37A |
| N3/10 | ME-SFI [ME] control unit | 8H |
| N30/4 | Electronic Stability Program control unit | 19C |
| N69/1 | Left front door control unit | 32D |
| N73 | Electronic ignition switch control unit | 24B |
| N82/2 | Battery management system control unit | 25K |
| Y3/8n4 | Fully integrated transmission control control unit | 2H |
