Remove/Install Intake Air Temperature Sensor - AR07.52-P-1465OGR

ENGINE 642 in model 166, 292

Shown on model 212.020

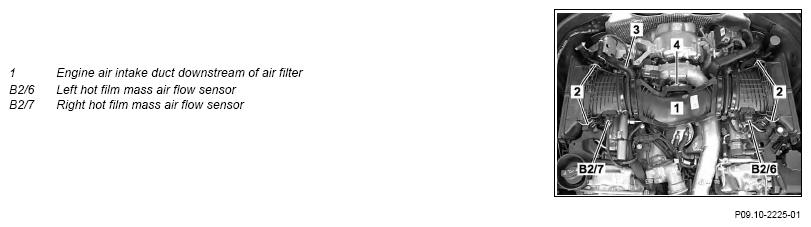

Fig 1: MAF/Intake Air Temperature Sensor Components Location - Engine 642 In Model 166 (Shown On Model 212.020)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove ENGINE cover	: Ensure correct seating of the ENGINE cover.
2	Remove right air filter housing		AR09.10-P-1150OGR
3	Remove ENGINE air intake duct downstream of the air filter (1)	The intake air temperature sensors are located in the left hot film MAF sensor (B2/6) and in the right hot film MAF sensor (B27). : The left hot film MAF sensor (B2/6) and the right hot film MAF sensor (B2/7) must be completely replaced in the event of a defect, along with the ENGINE intake air duct downstream of the air filter (1).	AR09.10-P-8130OGR
4	Install in the reverse order
5	Read out and clear fault memory using the diagnostic system
			AD00.00-P-2000-04A
