Service Campaign 2024030005 - Update Engine Control Unit Software (P-SC-2024030005)

Publication date: 2024-04-18
Reference number: P-SC-2024030005

SERVICE CAMPAIGN 2024030005 - UPDATE ENGINE CONTROL UNIT SOFTWARE

SERVICE CAMPAIGN BULLETIN

Reference Number(s): P-SC-2024030005, Date of Issue: April 18, 2024

MERCEDES-BENZ:

Model GLS (166 platform) Model Year 2017

SERVICE INFORMATION

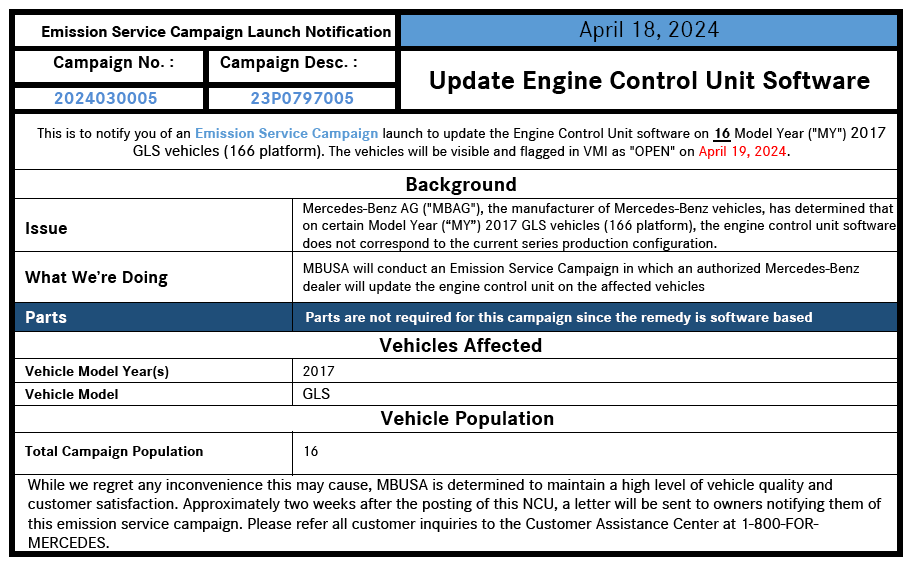

IMPORTANT NEW EMISSION SERVICE CAMPAIGN INFORMATION

Please note that all customer inquiries should be directed to the Customer Assistance Center at 1-800-FOR-MERCEDES.

Sincerely,

Gregory Gunther

Department Manager, Vehicle Compliance & Analysis

April 2024

TO: ALL MERCEDES-BENZ CENTERS

SUBJECT

Model GLS (166 platform)

Model Year 2017

Mercedes-Benz AG, the manufacturer of Mercedes-Benz vehicles, has determined that on certain MY 2017 GLS vehicles (166 platform), the engine control unit software does not correspond to the current series production configuration. An authorized Mercedes-Benz dealer will update the engine control unit software on the affected vehicles.

Prior to performing this Campaign:

VMI must be checked before performing campaigns to verify that the campaign is required on a specific vehicle. Always check for any other open campaigns and perform accordingly.
Please review the entire Campaign bulletin and follow the repair procedure exactly as described.

Approximately 16 vehicles are affected.

Order No. P-SC-2024030005

Always use the latest XENTRY Diagnosis software release with all available add-ons.
Follow the operation steps exactly as described in XENTRY Diagnosis.
Use a charger to ensure sufficient power supply to the vehicle's on-board electrical system battery (greater than 12.5 V).
If XENTRY Diagnosis is already connected to the vehicle, start with Work Procedure Step 2 .
If two or more software updates or SCN codings are performed during a single workshop visit, operation items 02-4762 and 02-5058 may be invoiced only on one of the workshop orders.

WORK PROCEDURE

Connect XENTRY Diagnosis.
Update N3/10 Motor Electronics (ME) control unit software.
To do this, select menu item "Quick test view → N3/10 Motor Electronics 'MED177' for combustion engine 'M278' (ME) → Adaptations → Control unit update → Update of control unit software".

Then follow the user guidance in XENTRY Diagnosis.
Disconnect XENTRY Diagnosis.

NOTE: The following allowable labor operation should be used when submitting a warranty claim for this repair:

WARRANTY INFORMATION

Damage Code

Operation Number

Description

Labor Time (hrs.)

07 970 05

02-9334

Update N3/10 - Motor Electronics 'MED177' for combustion engine 'M278' (ME) control unit software (with XENTRY Diagnosis connected)

0.1

02-4762 ⁽¹⁾

Connect/disconnect diagnostic system
(XENTRY Diagnosis)

0.1

02-5058 ⁽¹⁾

Connect/disconnect starter battery charger
(with XENTRY Diagnosis connected)

0.1

⁽¹⁾	Invoice operation items only on one of the workshop orders, if two or more software updates or SCN codings are performed during a single workshop visit.

NOTE: Always check Xentry Operation Time (XOT) for the current OP-Code times. Labor times are subject to change and updates may not be reflected in this document.
