Remove/Install Camshaft Hall Sensor - AR15.10-P-2000OGR
Engine 642 in model 166, 292
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove right air filter housing | AR09.10-P-1150OGR | |
| 2 | Remove RH soundproofing | ||

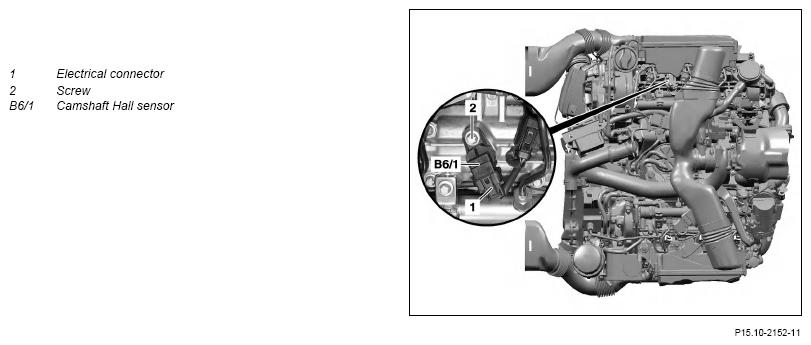

| 3 | Release and disconnect electrical connection (1) | ||
| 4 | Remove screw/bolt (2) | *BA15.10-P-1002-03G | |
| 5 | Take out camshaft Hall sensor (B6/1) | ||
| 6 | Install in the reverse order | ||
| 7 | Read out fault memory using the diagnostic system and clear if necessary | ||
| AD00.00-P-2000-04A | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform an engine test run; check engine for functionality and leaks |
HALL SENSOR
| Number | Designation | Engine 642 | |
|---|---|---|---|
| BA15.10-P-1002-03G | Camshaft position sensor to cylinder head cover | Nm | 8 |
