Remove/Install Crankshaft Hall Sensor - AR15.12-P-2136GQ

Engine 276 in model 166, 251, 292

Shown on model 166 with engine 276.9

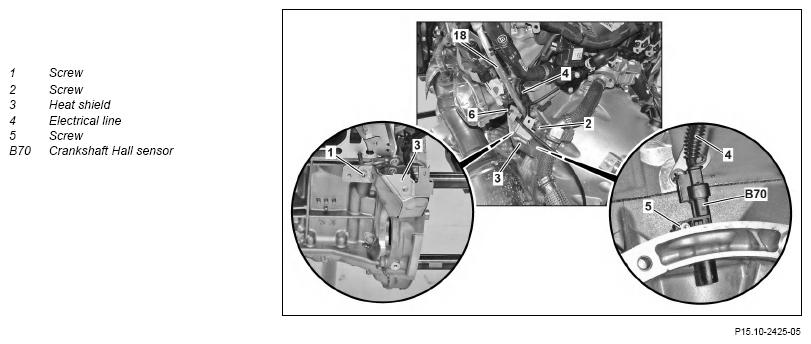

Fig 1: Crankshaft Hall Sensor Components Location - Engine 276 In Model 166 (Shown On Model 166 With Engine 276.9)
G14134378DANGERDANGERREMOVINGINSTALLINGTORQUE SPECIFICATIONREFER TO SELF-DIAGNOSTIC SYSTEMSWARNINGCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. AS00.00-Z-0035-01A
General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system   AH00.00-Z-0300-01A
REMOVINGINSTALLING Remove/install
1 Perform enable for the high voltage on-board electrical system Engine 276 in model 166.063 AR54.10-P-1150GQA
2 Remove partition wall between wheel wells Engine 276 in model 251 AR62.30-P-2400RT
3 Remove windshield wiper system Engine 276.8 in model 251 AR82.30-P-6400RT
4.1 Remove front upper engine cover Engine 276.9 in model 166, 251
4.2 Remove upper engine cover Engine 276.8 in model 166, 251, 292
5.1 Remove ME-SFI [ME} control unit and bracket for control unit Engine 276.9 in model 166, 251 AR07.08-P-7008GQ
5.2 Remove left-hand air filter housing Engine 276.8 in model 166, 251, 292 AR09.10-P-1150GQC
6 Remove rear heat shield on the left from ATL Engine 276.8 in model 166, 251, 292 AR49.10-P-5500GQC
7 Remove heat shield holder on the left behind the ATL Engine 276.8 in model 166, 292
8 Remove left catalytic converter Engine 276.8 in model 251 AR49.10-P-5500GQC
9 Remove screws (1, 2) and heat shield (3) for crankshaft Hall sensor (B70)
10 Disconnect electrical line (4) on crankshaft Hall sensor (B70)
11 Remove screw (5) and crankshaft Hall sensor (B70) upwards TORQUE SPECIFICATION Bolt, crankshaft Hall sensor to crankcase *BA15.10-P-1001-03E
12 Install in the reverse order
13 Read out fault memory using the diagnostic system and clear if necessary
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04A
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
14 Conduct engine test run and check the engine for oil loss
POSITION SENSOR

Number Designation Engine 276
BA15.10-P-1001-03E Bolt, crankshaft Hall sensor to crankcase Nm 8
