Remove/Install Fuel Pump Control Unit - AR47.20-P-5717GQ
Model 166 with engine 157, 276, 278
Model 292 with engine 157, 276, 278

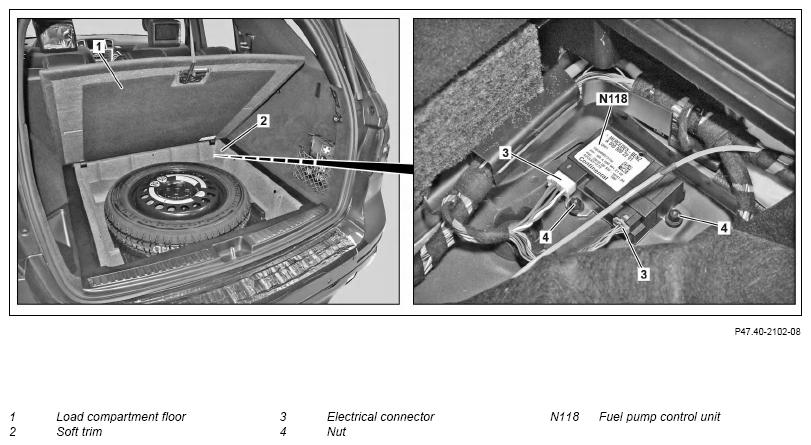

Shown on model 166.057

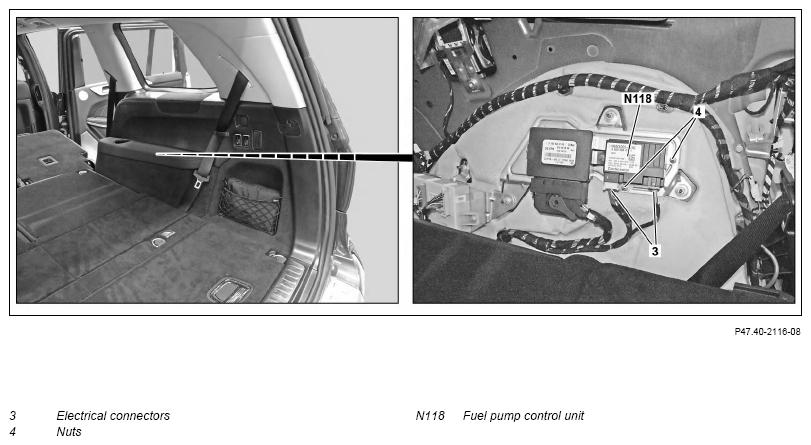

Shown on 166.873
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system | AH00.00-Z-0300-01A | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove high-voltage battery | Model 166.063 with engine 276 | |
| AR54.10-P-1140GQA | |||
| 2 | Remove right side of panel in trunk | Model 166.8 with engine 157, 276, 278 | |
| AR68.30-P-4800GQX | |||
| 3 | Remove load compartment floor (1) | Model 166.0 with engine 157, 276, 278 Model 292 with engine 157, 276, 278 |
|
| 4 | Hammer back soft trim (2) and remove cover on FSCU (N118) | Model 166.0, 292 with engine 157, 276, 278 | |
| 5 | Remove cover over the FSCU (N118) | Model 166.063 with engine 276 | |
| 6 | Unscrew nuts (4) and remove FSCU (N118) | ||
| 7 | Release and disconnect electrical connections (3) from the fuel system control unit (N118) | ||
| 8 | Install in the reverse order | ||
| 9 | Activate FSCU (N118) using diagnostic system | ||
| AD00.00-P-2000-04A |
