Remove/Install Collision Prevention Assist Controller Unit - AR30.30-P-0002RG
Model 190
up to Model year 2017
with code 258 (COLLISION PREVENTION ASSIST)
| Topical note | Notes on preventing damage to electronic components due to a magnetic tool | AH54.00-P-0002-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Perform commissioning of the COLLISION PREVENTION ASSIST controller unit (A90) | When replacing the COLLISION PREVENTION ASSIST controller unit (A90). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove front bumper and place on soft, clean surface | AR88.20-P-2000RG | |

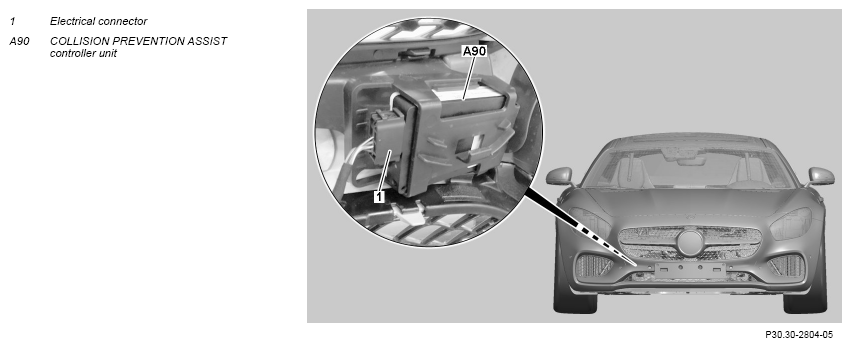

| 4 | Release and disconnect electrical connection (1) on COLLISION PREVENTION ASSIST control unit (A90) | ||
| 5 | Unclip and remove COLLISION PREVENTION ASSIST controller unit (A90) at the rear of bumper | ||
| 6 | Install in the reverse order |
