Check Front Diffuser - AP61.00-P-6151A
Model 190
with code M032 (Black Series version)

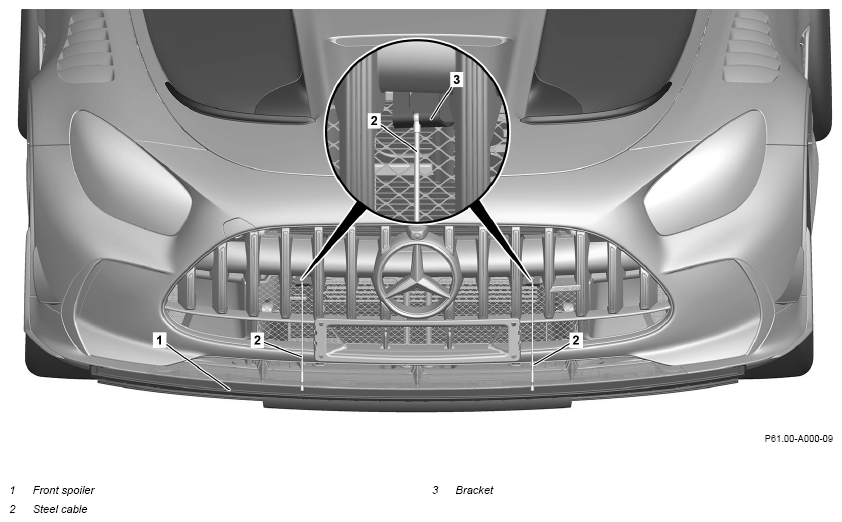

Shown on model 190 with code M032 (Black Series version) and extended front spoiler (1)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Check | |||
| 1 | Check front spoiler (1) for damage, deformation, correct seating and soiling. | If problems are determined, ↓ rectify the problems. |
|
| 2 | Check steel cables (2) for damage and correct seating of anchorage on front spoiler (1) and holders (3). | If problems are determined, ↓ rectify the problems. |
|
| 3 | Check holders (3) for damage, deformation, correct seating and soiling. | If problems are determined, ↓ rectify the problems. |
