Throttle Valve Actuator, Basic Function - GF07.61-P-2000A
Engine All (4xWD)
Engine All (CAR)

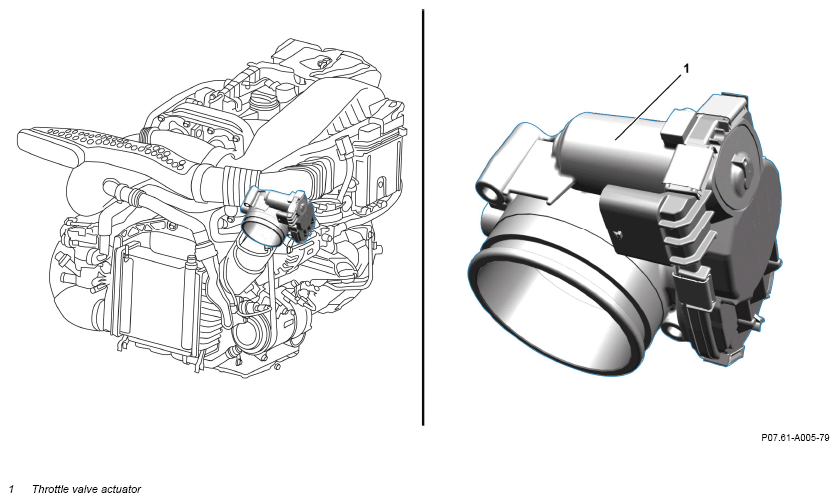

Sample diagram with engine 256

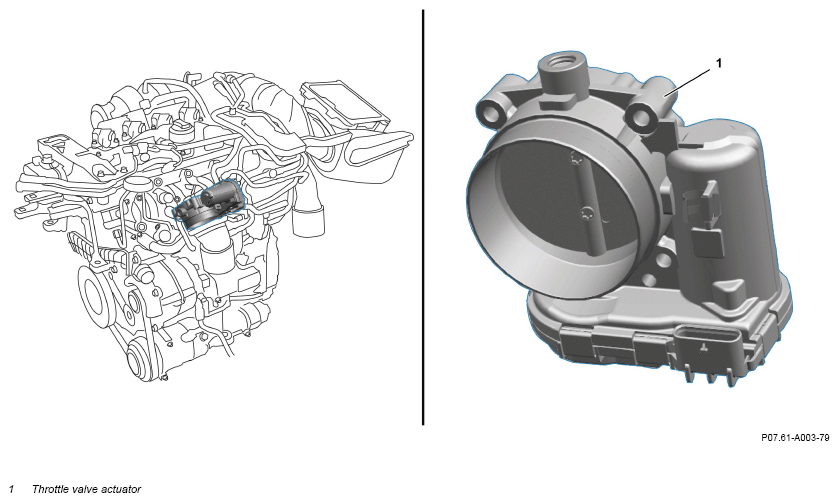

Sample diagram with engine 139
Overview
This document contains information on:
- General
- Function
General
The throttle flap actuator (1) regulates the following functions:
- Exhaust gas recirculation
- Idling speed
- Driving mode (according to accelerator pedal position and engine load)
- Cruise control function
- Electronic accelerator pedal emergency running mode, function
In a de-energized state (e g limp-home mode) the opening angle of the throttle valve is determined by the return spring (limp-home position)
The throttle flap actuator (1) carries out a check of its return spring under the following requirements at "ignition ON":
- Gear range "P" or "N" engaged
- Vehicle at rest
- Engine "OFF"
- Coolant temperature between 5 and 100°C
- Accelerator not operated
The first time the throttle flap actuator (1) is connected to the vehicle the combustion engine control unit automatically carries out an adaptation of the throttle flap actuator (1)
Function
The throttle valve actuator motor (4) continuously adjusts the opening angle of the throttle flap from approx 0 to 90° according to the specification of the combustion engine control unit.
The two counter-rotating actual value potentiometers 1 and 2 (2 3) communicate in this connection the current position of the throttle flap to the combustion engine control unit.
The adaptation is performed within about 60 s after first energization (ignition ON) and comprises:
- Identified limp-home position
- Identified lower mechanical end stop of throttle valve
- Adaptation of actual value amplifier (signals 1 and 2) in combustion engine control unit
- Checking the return spring
Wiring diagram of throttle valve actuator
| Component descriptions | |||
|---|---|---|---|
| Throttle actuator, component description | Engine 176, 177, 256, 279, 656 in model 223 | GF30.20-P-2022A | |
| Engine 254 in model 206 Engine 654 in model 206 |
GF30.20-P-2022C | ||
| Engine 139, 177 in model 232 | GF30.20-P-2022F | ||
| Engine 139, 254, 654 in model 254 | GF30.20-P-2022H | ||
| Engine 656 in model 464 | GF30.20-P-2022J | ||
| Engine 254, 256, 654, 656 in model 214 | GF30.20-P-2022K | ||
| Engine 139, 260, 282, 608, 654 in model 118, 177, 247 as of model year 2023 | GF30.20-P-2022L | ||
| Engine 176, 177, 254, 256, 264, 274, 654, 656 in model 167 as of model year 2023 | GF30.20-P-2022M | ||
| Engine 139, 177 in model 192 | GF30.20-P-2022R | ||
| Engine 177, 254, 256, 654 in model 236 | GF30.20-P-2022S |
