Remove/Install ME-SFI Control Unit - AR07.08-P-1000MNB
Engine 178 In Model 190 (Except 190.381)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

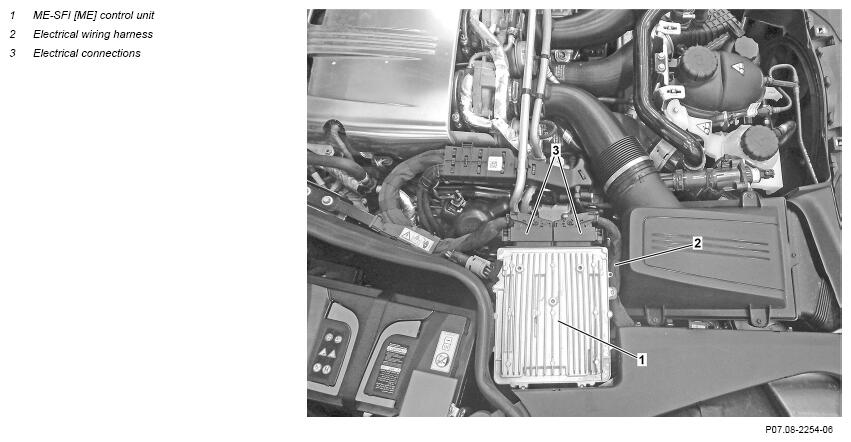

| 1 | Read out variant coding of the ME-SFI [ME] control unit (1) with the diagnostic system | ||
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and remove transmitter key | ||
| 3 | Open engine hood | AR88.40-P-1000RG | |
| 4 | Unclip electrical wiring harness (2) on ME-SFI [ME] control unit (1) bracket | ||
| 5 | Disconnect electrical connections (3) on ME-SFI [ME] control unit (1) | ||
| 6 | Unclip ME-SFI [ME] control unit (1) upwards and take it off | ||
| 7 | Detach bracket from ME-SFI [ME] control unit (1) | When replacing the ME-SFI [ME] control unit (1) | |
| 8 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Carry out an engine test run |
