RECALLL Campaign 2018090007 - Update Engine Control Unit Software (P-RC-2018090007)

Publication date: 2018-11-01
Reference number: P-RC-2018090007
Supersedes refnos: 2018090007

RECALLL CAMPAIGN 2018090007 - UPDATE ENGINE CONTROL UNIT SOFTWARE

SERVICE CAMPAIGN BULLETIN

Reference Number(s): 2018090007, Date of Issue: November 01, 2018

MERCEDES-BENZ:

Model AMG GT-Class vehicles (190 platform) Model Years 2017 and 2018

SUBJECT

Model AMG GT-Class vehicles (190 platform)

Model Years 2017 and 2018

Update engine control unit software

Daimler AG ("DAG"), the manufacturer of Mercedes-Benz vehicles, has determined that on certain AMG GT-Class vehicles (190 platform), the ECU software may not be sufficiently robust, which may cause the vehicle to exceed non-methane organic gas (NMOG) and nitrogen oxides (NOx) limits.

Prior to performing this Recall Campaign:

Please check VMI to determine if the vehicle is involved in the Campaign and if it has been previously repaired.
Please review the entire Recall Campaign bulletin and follow the repair procedure exactly as described.

Please note that Recall Campaigns do not expire and may also be performed on a vehicle with a vehicle status indicator.

Approximately 510 vehicles are involved.

Order No. P-RC-2018090007

This bulletin has been created and maintained in accordance with MBUSA-SLP S423QH001, Document and Data Control, and MBUSA-SLP S424HH001, Control of Quality Records.

NOTE:

Use DAS/Xentry 07/2018 with all associated patches or higher.
Follow the steps exactly as described in DAS/Xentry.
Connect battery charger (battery voltage >12.5V).
Ensure all electrical consumers are switched-off.
In the event of software/SCN update issues, contact Star Diagnosis User Help Desk. Please refer to the "pre-call" check list before contacting UHD
Refer to Star Diagnosis System (SDS) Best Practices Guide.

PROCEDURE

Update engine control unit software.
To do so, select menu item "Quick test view → N3/10-engine electronics → Adaptations → Control unit update → Update of control unit software".

Then follow the user guidance in XENTRY DIAGNOSTICS/DAS.

The following step applies to California dealers only.

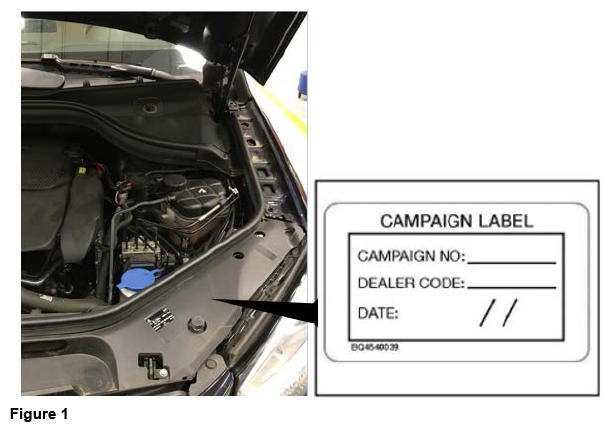

Apply Proof of Correction Label (BQ 4 54 0039) to area identified in Figure 1. Fill in Campaign number: 2018090007, your dealer code, and the date of the repair, using a black permanent marker.

NOTE: Clean bonding surface prior to affixing label.

The following step applies to California dealers only.

Provide the owner with the completed and signed Proof of Correction Certificate (attached), after you scan a completed form and attach to the RO.

PRIMARY PARTS INFORMATION

Qty.	Part Name	Part Number	Estimated Replacement Rate
1	Label (CA Dealers Only)	BQ 4 54 0039	100%

WARRANTY INFORMATION

Operation: Connect/disconnect battery charger (02-5058)

Star Diagnosis System (SDS), Connect/disconnect (02-4762)

Update engine control unit software (02-9334)

WARRANTY INFORMATION

Damage Code	Operation Number	Labor Time (hrs.)
54 997 32 8	02-5058	0.1
	02-4762	0.1
	02-9334	0.1

If two or more software updates or SCN codings are performed during a workshop visit, the operation items 02-4762 and 02-5058 can be invoiced

only once for each workshop order

NOTE: Operation Number labor times are subject to change.

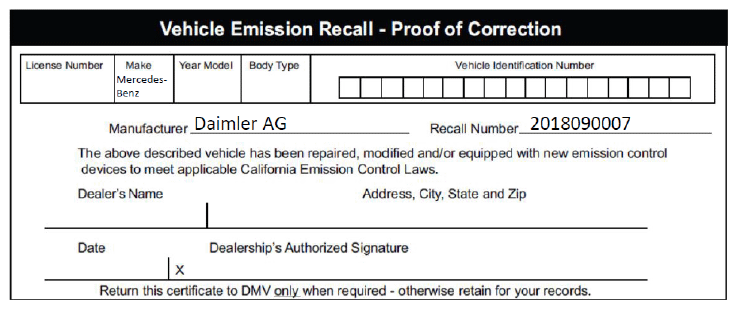

Proof of Correction Form: California Only
