Noises When Operating Menu Back Switch In Audio/COMAND Control Panel (LI82.00-P-067080)
Publication date: 2017-10-20Reference number: LI82.00-P-067080
NOISES WHEN OPERATING MENU BACK SWITCH IN AUDIO/COMAND CONTROL PANEL
TECHNICAL SERVICE BULLETIN
Reference Number(s): LI82.00-P-067080 Version 2, Date of Issue:
January 10, 2018
| MERCEDES-BENZ: | Model series 222 with code 808 |
| FUNCTION GROUP: | 82.00 General |
| REASON FOR CHANGE: | Remedy adapted |
COMPLAINT
There are noises when operating the menu back switch in the Audio/COMAND control panel. Customers perceive these noises as squeaking/creaking.
CAUSE
Due to the manufacturing process, there may be a minimal burr that can remain on the button trim.
REMEDY

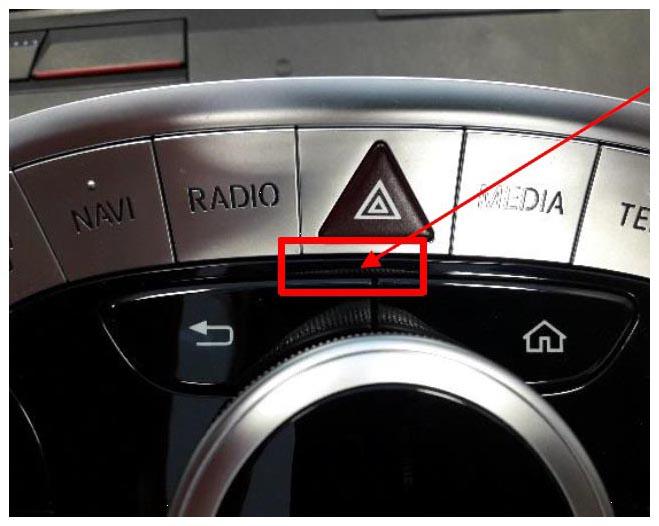

- Insert a piece of dry paper between the back menu switch in the Audio/COMAND control panel (A40/9) and move the cover (see attachment A area). In doing so, the minimal burr is detached.
- Moisten a piece of paper on both sides with a drop of lubricant - BERULUB ND - FLUID 160 (order number: A 000 989 36 60) and repeat procedure.
ATTACHMENTS
ATTACHMENTS
| File | Description |
|---|---|
| A.jpg | A |
PARTS
PARTS
| Part number | ES1 | ES2 | Designation | Quantity | Note | EPC |
|---|---|---|---|---|---|---|
| A0009893660 | LUBRICANT | 1 | Use for several repairs. |
OPERATION NUMBERS/DAMAGE CODES
OPERATION NUMBERS/DAMAGE CODES
| Op. no. | Operation text | Time | Damage code | Note |
|---|---|---|---|---|
| 8240K H2 |
