Remove/Install Exhaust Gas Recirculation Temperature Sensor - AR07.04-P-0013GZC
ENGINE 642 with CODE (U42) BlueTEC diesel exhaust treatment (SCR)

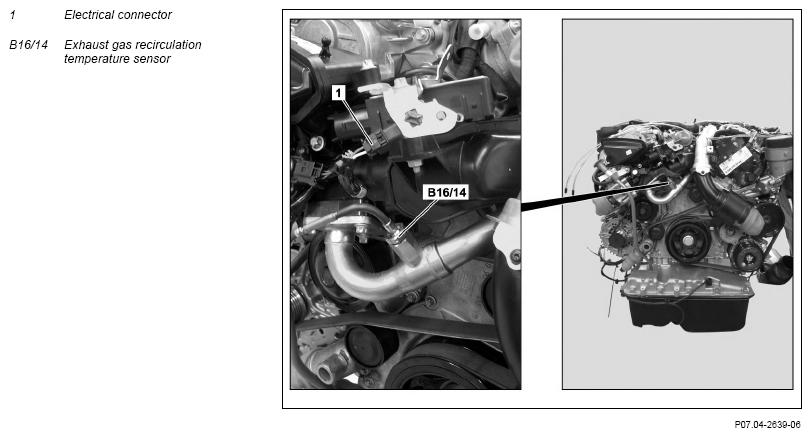

Fig 1: Exhaust Gas Recirculation Temperature Sensor Components Location - Engine 642 With Code (U42)
| Remove/install | |||
| Risk of injury to skin and eyes caused by handling hot or glowing objects. | Wear safety gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| 1 | Remove ENGINE trim panel | ||
| 2 | Disconnect electrical connector (1) from exhaust gas recirculation temperature sensor (B16/14) | ||
| 3 | Remove exhaust gas recirculation temperature sensor (B16/14) from exhaust gas recirculation pipe | *BA14.20-P-1005-01G | |
| *BR00.45-Z-1005-06A | |||
| 4 | Install in the reverse order | ||
| 5 | Read out fault memory, erase if necessary | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| Risk of accident caused by vehicle starting off by itself when ENGINE is running. Risk of injury caused by contusions and burns during starting procedure or when working near the ENGINE as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 6 | Carry out an ENGINE test run and test exhaust system for leaks |
EXHAUST GAS RECIRCULATION
| Number | Designation | ENGINE 642.82/83/85/86/87/886/9 | |
|---|---|---|---|
| BA14.20-P-1005-01G | Temperature sensor for exhaust gas temperature measurement | Nm | 45 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1005-06A | Paste, hot lubrication 1 kg, DB supply specification 6879.20 | A 000 989 76 51 |
