Service Campaign 2019100022 - Update Powertrain Control Unit (PTCU) Software (P-SC-2019100022)
Reference number: P-SC-2019100022
Supersedes refnos: 2019100022
SERVICE CAMPAIGN 2019100022 - UPDATE POWERTRAIN CONTROL UNIT (PTCU) SOFTWARE
SERVICE CAMPAIGN BULLETIN
| MERCEDES-BENZ: | MY19 205 213 217 222 257 290 463 (C-Class, E-Class, S-Class, CLS-Class, GT-Class and G-Class) |
SERVICE INFORMATION

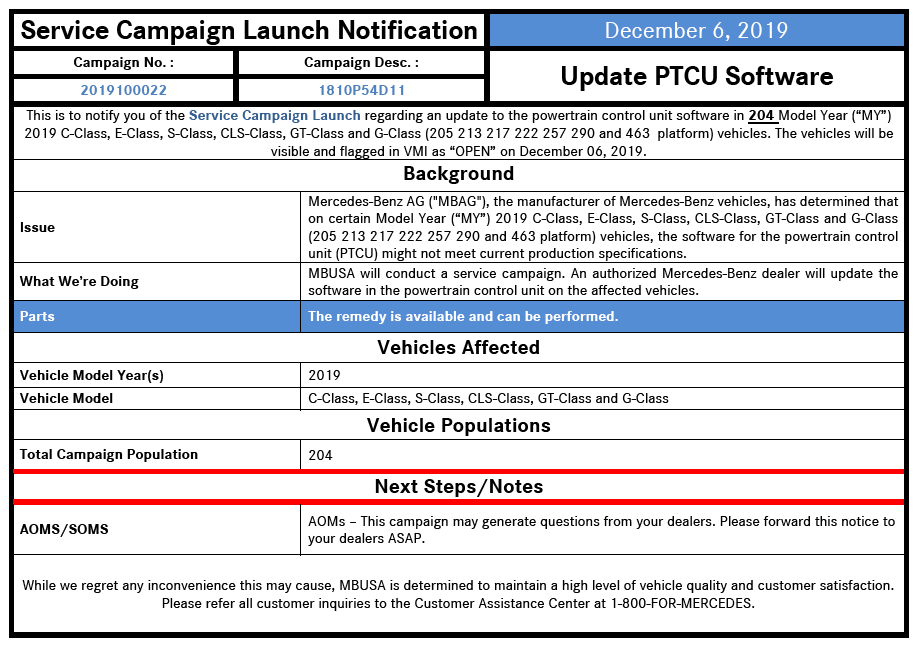

Please see the attached documents related to the campaign listed above.
Please note that all customer inquiries should be directed to the Customer Assistance Center at 1-800-FOR-M ERCEDES.
Sincerely,
Gregory Gunther
Department Manager, Vehicle Compliance & Analysis
SUBJECT
Models Various
Model Year 2019
Mercedes-Benz AG ("MBAG"), the manufacturer of Mercedes-Benz vehicles, has determined that on certain Model Year ("MY") 2019 C-Class, E-Class, S-Class, CLS-Class, GT-Class and G-Class (205 213 217 222 257 290 and 463 platform) vehicles, the software for the powertrain control unit (PTCU) might not meet current production specifications. An authorized Mercedes-Benz dealer will update the software in the powertrain control unit on the affected vehicles.
Prior to performing this Service Campaign:
- Please check VMI to determine if the vehicle is involved in the Campaign and if it has been previously repaired. Always Check VMI for any open campaigns, and perform accordingly.
- Please review the entire Service Campaign bulletin and follow the repair procedure exactly as described.
Approximately 204 vehicle is affected.
Order No. P-SC-2019100022
This bulletin has been created and maintained in accordance with MBUSA-SLP S423QH001, Document and Data Control, and MBUSA-SLP S424HH001, Control of Quality Records.
- Use Xentry 3/19 with all associated patches or higher.
- Follow the steps exactly as described in Xentry.
- Connect battery charger (battery voltage >12.5V).
- Ensure all electrical consumers are switched-off.
- In the event of software/SCN update issues, contact Star Diagnosis User Help Desk via. XSF ticket.
- Refer to Star Diagnosis System (SDS) Best Practices Guide.
WORK PROCEDURE
- Connect XENTRY Diagnosis.
- Update software of powertrain (PTCU) control unit.
To do this, select menu item "Quick test view - N127 Powertrain (PTCU) → Adaptations → Control units update → Update of control unit software".
Then follow the user guidance in XENTRY Diagnosis.
WARRANTY INFORMATION
Operation: Connect/disconnect battery charger (02-5058)
Star Diagnosis System (SDS), Connect/disconnect (02-4762)
Update software of powertrain(PTCU) control unit (02-9334)
| Damage Code | Operation Number | Labor Time (hrs.) |
|---|---|---|
| 54 987 02 8 | 02-5058 | 0.1 |
| 02-4762 | 0.1 | |
| 02-9334 | 0.1 |
