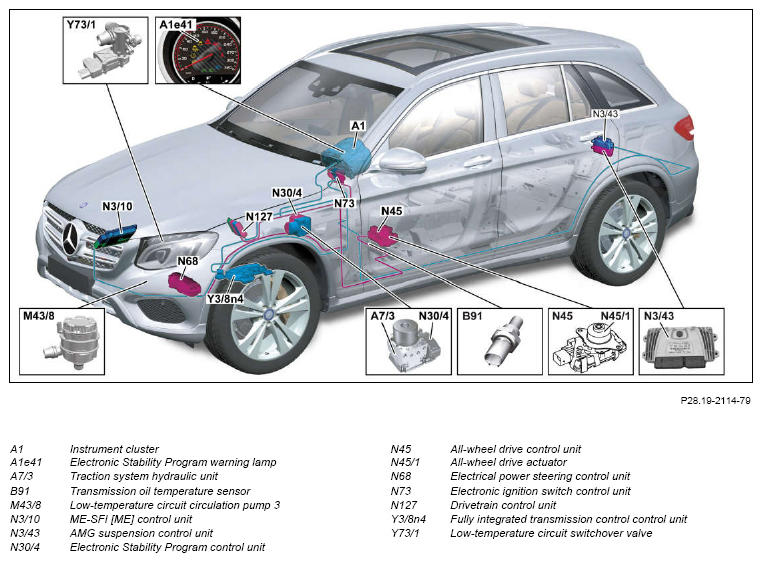

Overview Of System Components, Automatically Controlled All-Wheel Drive (4Matic) - GF28.00-P-9998AVJ
Model 253 with transmission 725.096
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Component description for ME-SFI (ME) control unit | Model 253 with engine 177.9 with transmission 725.096 N3/10 |
GF07.61-P-6000MNA | |
| AMG sports suspension control unit, component description | Model 253 with transmission 725.096 with code 467 (Electronic locking differential) N3/43 | GF54.21-P-1002AVJ | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119RF | |
| All-wheel drive control unit, component description | N45, N45/1 | GF28.19-P-3210AVJ | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010RF | |
| Component description for the electronic ignition lock control unit | Model 253 with transmission 725.096 up to model year 2020 N73 | GF80.57-P-6001RF | |
| Model 253 with transmission 725.096 as of model year 2020 N73 | GF80.57-P-6001RFM | ||
| Drivetrain control unit, component description | N127 | GF54.21-P-2141MNA | |
| Component description for fully integrated transmission control unit | Y38n4 | GF27.60-P-5165ANI | |
| Multi-disk clutch, component description | GF28.50-P-1100AVJ | ||
| Transmission oil heat exchanger, component description | GF28.55-P-1001AVJ | ||
| Front axle shafts, component description | GF33.30-P-1001AVJ | ||
| Table of contents for function description, automatically controlled all-wheel drive (4MATIC) | GF28.00-P-0999AVJ |
