Automatically Regulated All-Wheel Drive (4MATIC) Torque Distribution - GF28.00-P-0001-02AVM

Model 217, 222 with transmission 725.096

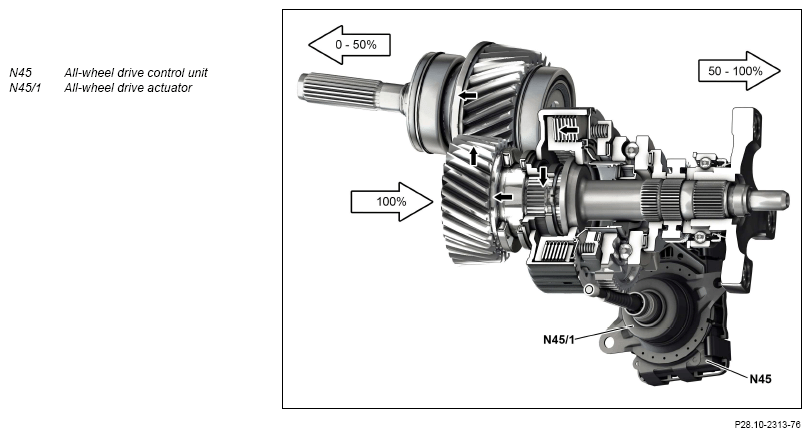

Torque distribution in transfer case

Courtesy of MERCEDES-BENZ USA

Closing the multidisk clutch causes up to 50 % of the drive torque to be distributed to the front axle transmission output.
